6061 Aluminium
Frame
1000W
Geared Hub Motor
48V 15Ah
Battery
35-55 Miles
Miles per Charge (estimate)
8 Speed
Gear Shift System
330lbs
Payload Capacity

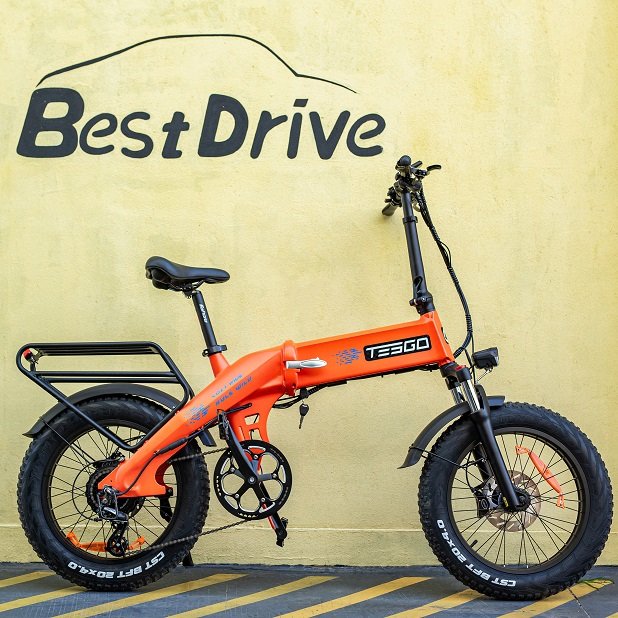

Experience Your All Terrain Fat Tire Electric Bike
The best all terrain ebike,
from forests to sandy beaches and dense snow.
1000W Brushless Motor With 95Nm Max Torque
The powerful rear motor provides 1000w of continuous power output, and even higher peak output during short periods when needed. You can now conquer hills faster, get up to speed quicker, and experience a consistently stronger ride — even at lower speeds.
1000W
Motor Power
95Nm
Max Motor Torque
GO WHEREVER YOU WANT
To make the round trip, we've included a 48v, 15ah, lithium-ion removable battery that lasts 40-60 miles on a full charge. We wanted to make sure when you get there you can also get back! You can charge the battery in the frame, or remove it and charge it inside.
35-55 Miles
Per Charge
720Wh
Total Battery Capacity
Pedal Assist & Throttle
No human power needed with a throttle on demand you can go as you please! But if you are out for some exercise there are three levels of pedal assist there to help you should you want to push yourself right to your limit.
LCD Color Display
LCD display with USB charging. The full LCD dashboard displays E-Bike performance information to the rider through an LCD screen. Backlight display provides speed, mileage, power, battery level, etc. Anti-Slip handle and Thumb throttle reduce hand and wrist fatigue.
48V Headlight
Visibility is improved to guarantee your safety while riding at night.
Front Fork: Coil Suspension
The durable suspension fork has preloaded adjustments for the spring’s stiffness and a lock-out lever. With the available compression, it will be the perfect fit for your chosen terrain.
Seatpost Suspension
The suspension seatpost is ideal for maintaining superior comfort on uneven and poorly maintained terrain. The discomfort caused by a rigid seat can be simply adjusted with its addition.
Shimano 8 Speed Gear Shift System
The Shimano 8 speed gear shift system offers you more choice while riding in a variety of conditions. Along with the pedal-assist system, you can find the speed that suits your journey.
180mm Front Disc Brakes
Both the front 180mm discs and rear 160mm discs provide ample stopping power even in the harshest conditions. The 2.8mm thick brake disc makes the braking effect better.
Dual Hydraulic Brake
Hydraulic brakes provide superior braking performance and durability. With proper maintenance, there won't be a decline in braking power for 5 years.
Integrated Brake Light
The automatic brake light will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.
| Hub Motor 1300W (Peak) 1000W (Sustained), |
Battery 48V/15Ah(720Wh) lithium battery |
|
| Display LCD display with USB charging |
Throttle Thumb throttle |
Charger US standard 2.0 A smart charger |
| Pedal Assist 3, 5, 7, or 9 levels (default 5) |
Controller 48V/25A |
Crank Set 220mm w/52T |
| Frame 6061 Aluminium |
Tires CST 20"*4.0" Fat Tire |
Shifter Shimano 8-Speed |
| Brake Dual Piston Hydraulic Brakes |
Front Fork Suspension with Adjustable Lockout |
Kickstand Heavy duty aluminum |
| Freewheel 12-32T 8-Speed |
Pedal Wellgo Aluminum Platform |
Saddle Soft and comfortable |
| Front Light 48V LED light |
Rear Light Integrated Taillight |
Speed Up to 28 MPH |
| Wiring Water resistant connectors and wiring harness |
Rims Double Wall Magnesium Alloy Wheels |
Included Battery, charger, assembly guide,user manual |
Tesgo ebikes are built to the IPX6 water-resistant standard. IPX6 means that your bike is resistant to water splashes from any direction. Which means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
Battery
48V 15Ah (720Wh) Lithium battery
Charger
US standard 2.0 A smart charger
Controller
48V/25A
Hub Motor
1000W brushless gear motor
Display
LCD display with USB charging
Range
40~60 miles per charge (estimate)
Pedal Assist
Intelligent 5 level pedal assist
Total Payload Capacity
330 lbs
Recommended Rider Heights
5'4"- 6'4"
Tesgo ebikes are built to the IPX6 water-resistant standard. IPX6 means that your bike is resistant to water splashes from any direction. Which means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.
