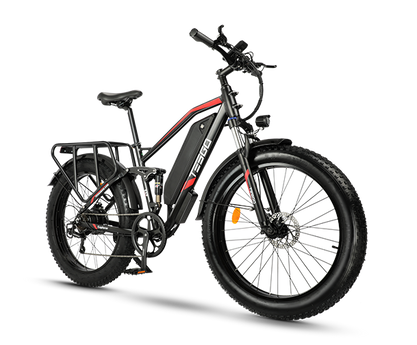

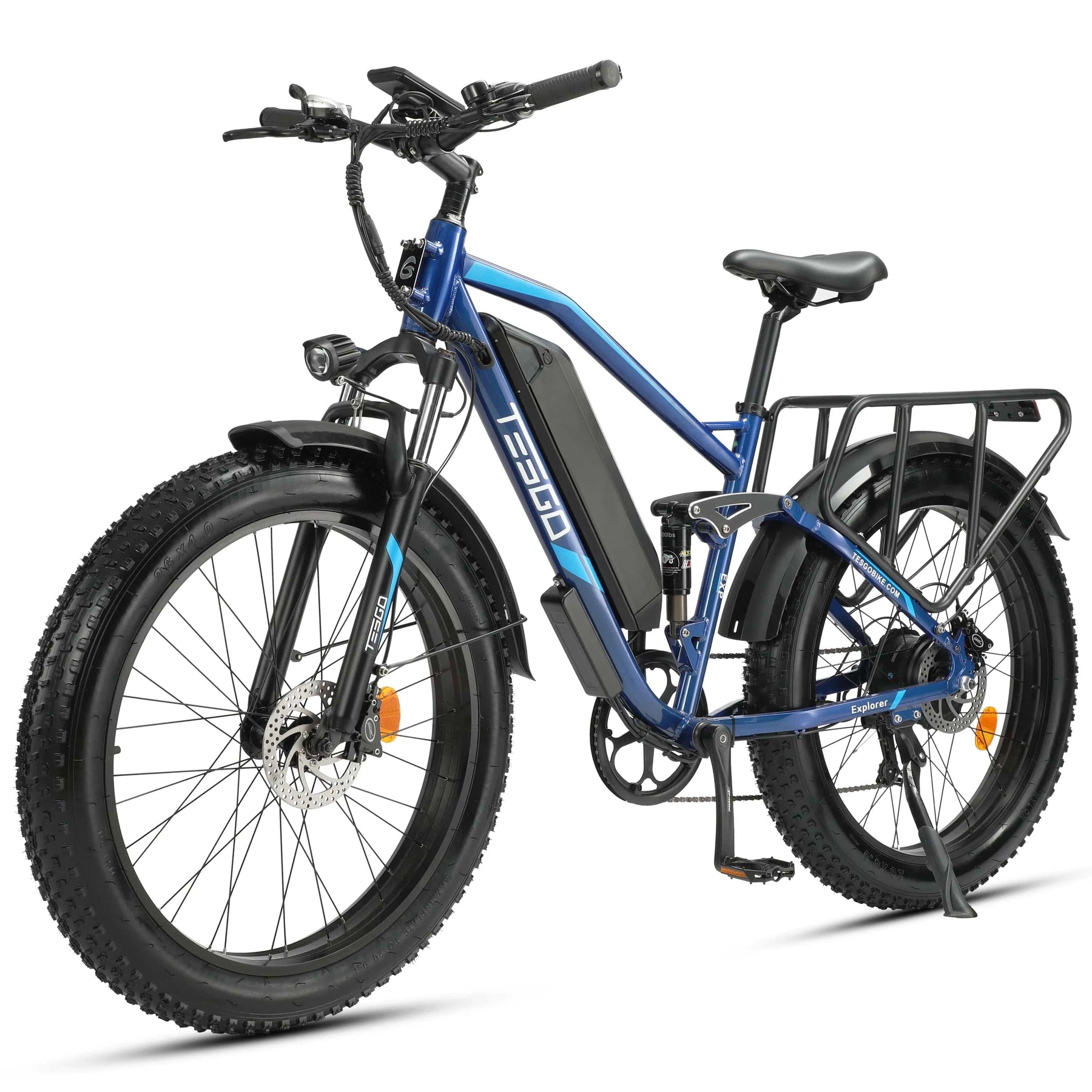

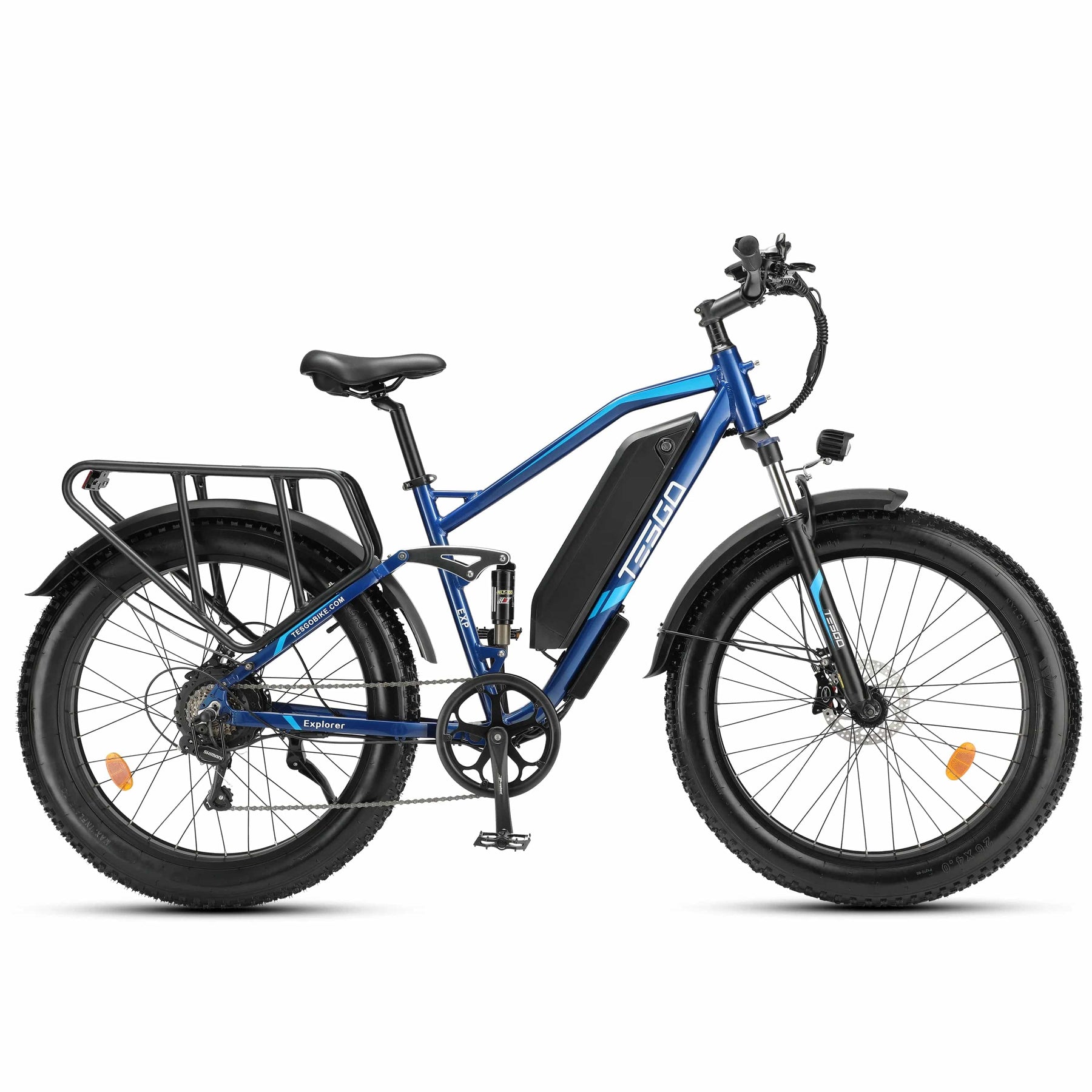

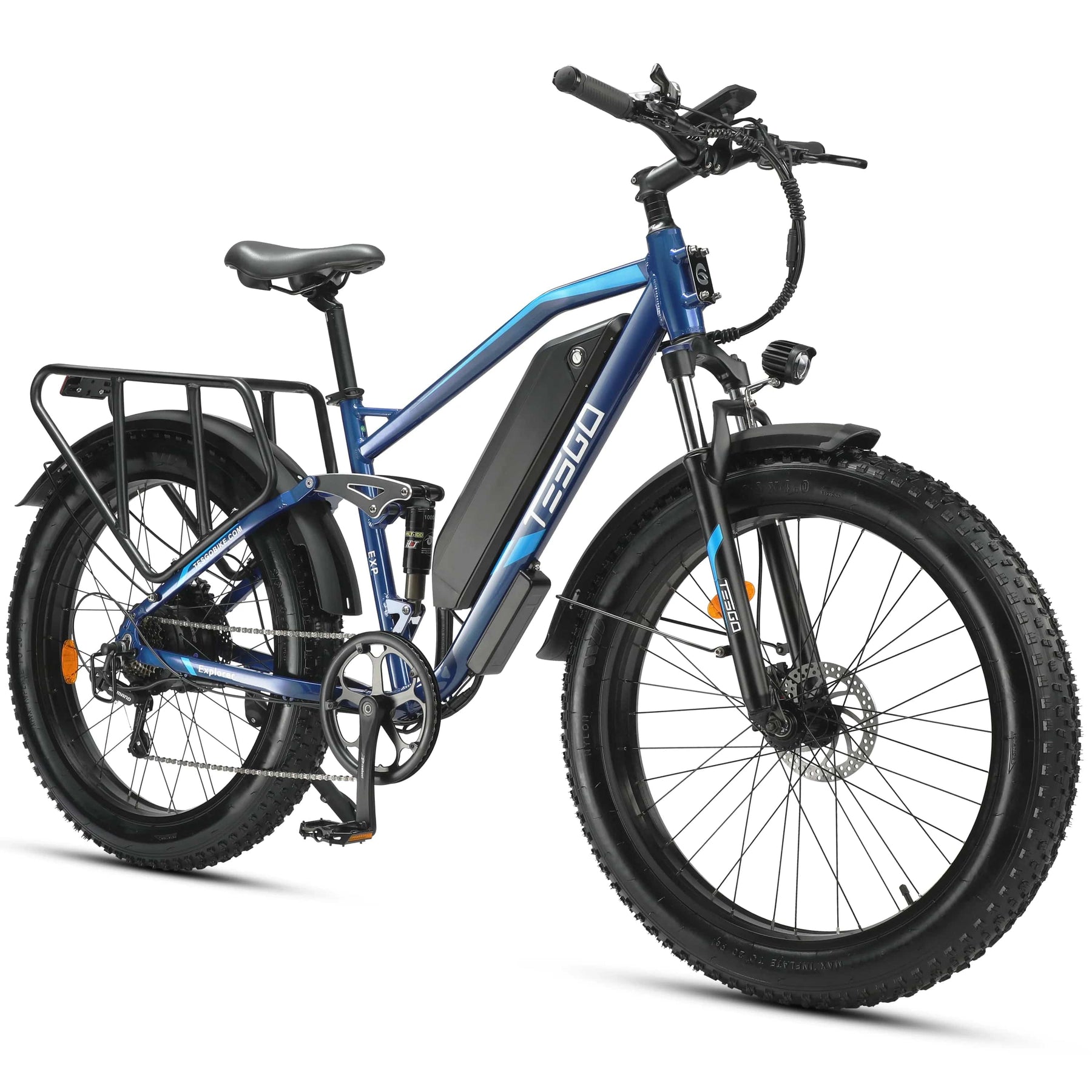

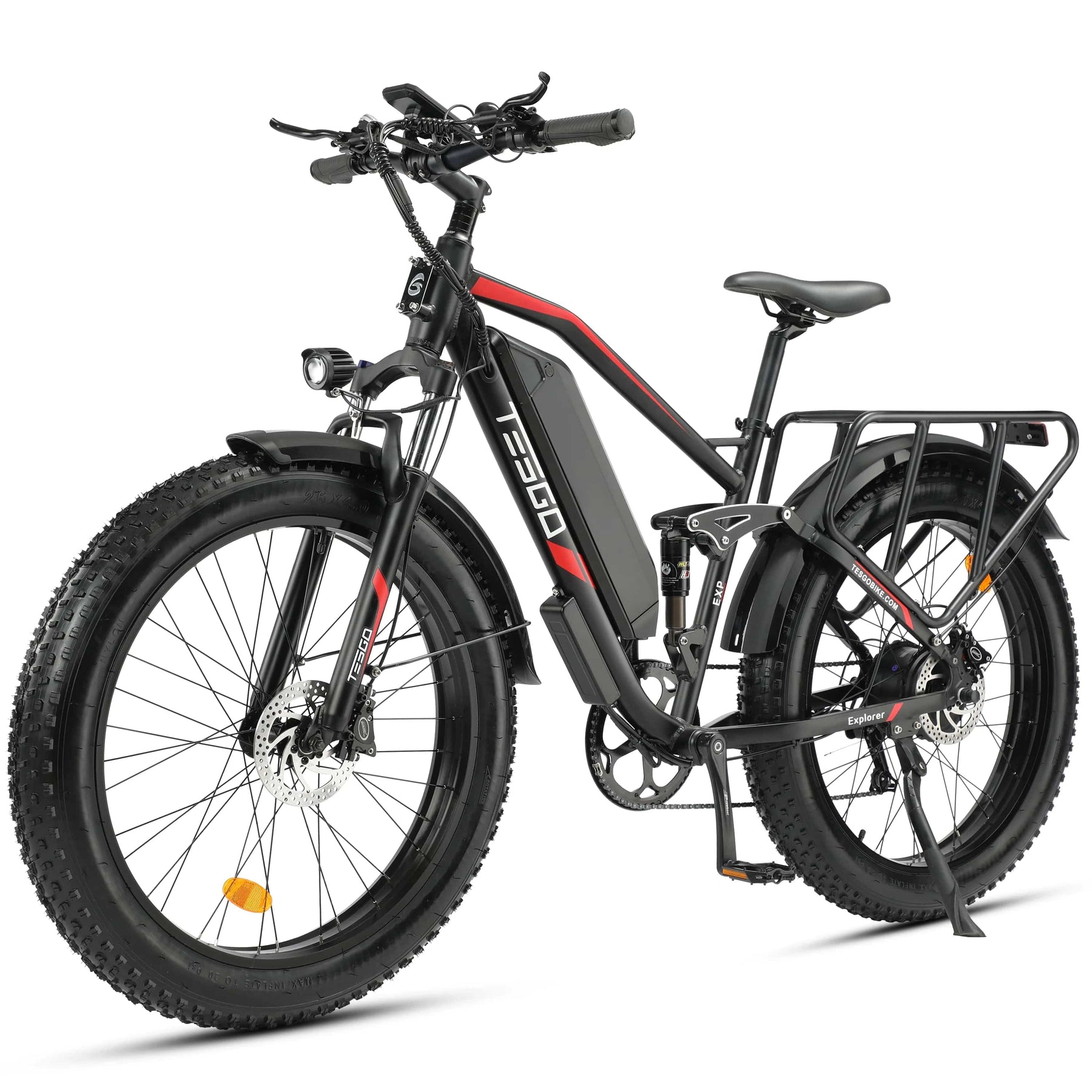

Name: Tesgo Explorer
Brand: Tesgo
SKU: TS-EXP-Black
Price: 1249.0 USD
Availability: OutOfStock

$1,249.00 $1,699.00

Tax included.

Color — Black

Black

Blue

Free Shipping
1-Year Warranty
14-Day Returns
Lifetime Support

We ship e-bikes (accessories are not included) free within 5-7 business days to the lower 48 states and do not ship to PO and APO boxes. For more information, visit our shipping policy.

Tesgo e-bikes have a 1-year warranty against all manufacturing defects from the date of delivery (free accessories are not covered). For more information, visit our warranty policy.

If for any reason you are unsure if the Tesgo e-bike is right for you, we will take it back. Just let us know within 14 days and we will cover full shipping costs if there are any problems with the e-bike. For more information, visit our return policy.

We're here to help - contact us for any reason.

[{"id":40319133483101,"title":"Black","option1":"Black","option2":null,"option3":null,"sku":"TS-EXP-Black","requires_shipping":true,"taxable":false,"featured_image":{"id":33329947082845,"product_id":6871132110941,"position":1,"created_at":"2023-07-24T03:06:22-05:00","updated_at":"2023-10-26T02:08:43-05:00","alt":"Tesgo Explorer #color_black","width":3000,"height":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-explorer-32835178299485.webp?v=1698304123","variant_ids":[40319133483101]},"available":false,"name":"Tesgo Explorer - Black","public_title":"Black","options":["Black"],"price":124900,"weight":30000,"compare_at_price":169900,"inventory_management":"shopify","barcode":"763431993272","featured_media":{"alt":"Tesgo Explorer #color_black","id":25640801730653,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3000,"width":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-explorer-32835178299485.webp?v=1698304123"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40319133515869,"title":"Blue","option1":"Blue","option2":null,"option3":null,"sku":"TS-EXP-Blue","requires_shipping":true,"taxable":false,"featured_image":{"id":33329952391261,"product_id":6871132110941,"position":5,"created_at":"2023-07-24T03:09:13-05:00","updated_at":"2023-10-26T02:08:43-05:00","alt":"Tesgo Explorer #color_blue","width":3000,"height":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-explorer-32835183116381.webp?v=1698304123","variant_ids":[40319133515869]},"available":false,"name":"Tesgo Explorer - Blue","public_title":"Blue","options":["Blue"],"price":124900,"weight":30000,"compare_at_price":169900,"inventory_management":"shopify","barcode":"763431993289","featured_media":{"alt":"Tesgo Explorer #color_blue","id":25640807104605,"position":5,"preview_image":{"aspect_ratio":1.0,"height":3000,"width":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-explorer-32835183116381.webp?v=1698304123"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

OFF-ROAD
FULL SUSPENSION FAT TIRE CRUISER

750 W

Powerful Motor

40-70 Miles

Extended Range

86 Nm

Max Torque

48V 17.5Ah

UL Certified LG Battery

28 Mph

Top Speed

350 Lbs

Max Load

Overview
Details
How to Install
Reviews

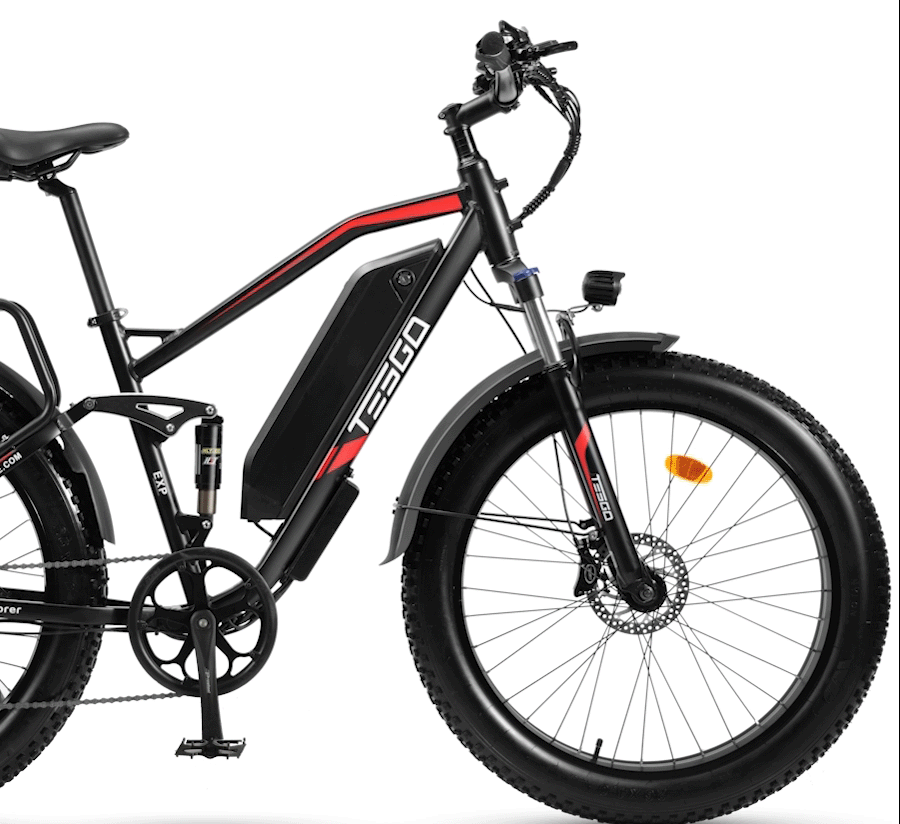

Full Suspension.

Explorer has a Dual Suspension System: the Hydraulic fork and Four-Bar Linkage Suspension. Four-Bar Linkage Suspension is especially good at absorbing shocks and forces coming from the back, while the hydraulic fork guarantees stability up front. Even in the most difficult riding conditions, both suspensions guarantee your safety and comfort.

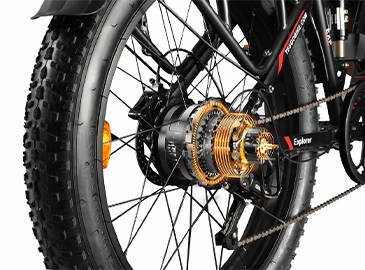

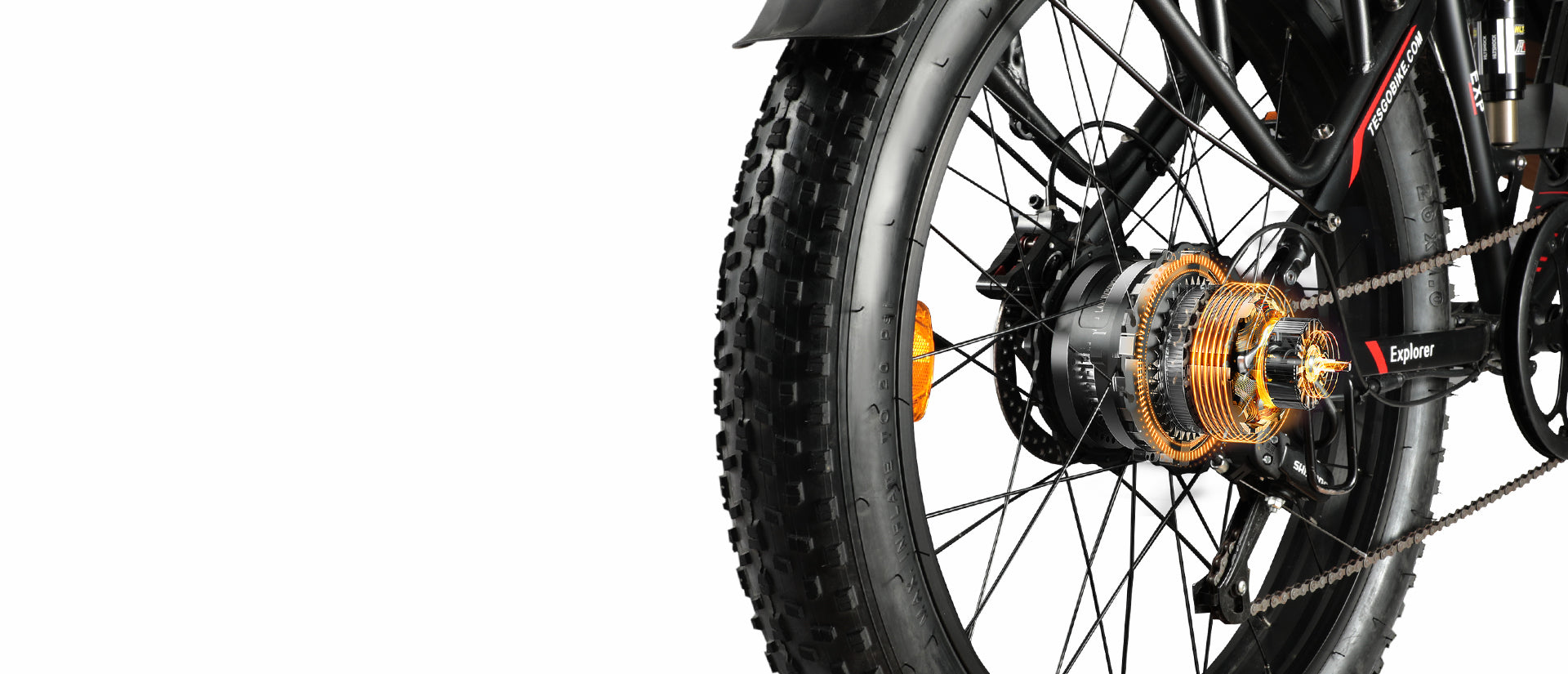

Powerful 750W Motor.

EXP gives you a powerful ride. The motor of the EXP has been upgraded to a 750W geared hub motor to give it even more power and a smoother ride. With the maximum motor torque of 86Nm, you can now overcome hills easily, accelerate more quickly, and enjoy a consistently more powerful ride – even at lower speeds.

750W Motor Torque

86Nm Motor Torque

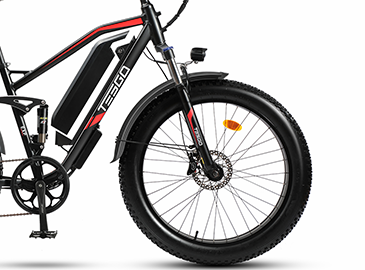

Ride More. Charge Less.

The LG battery placed on the frame can be easily removed and installed without tools. You can ride up to 70 miles on a single charge, depending on your support mode and riding style. Energy for all your adventures, no matter how far you ride.

40-70 Miles Per Charge

840 Wh Battery Capacity

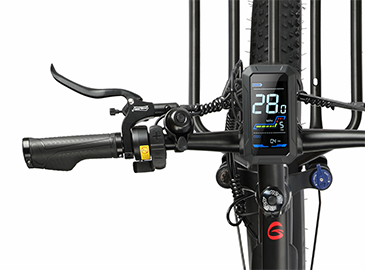

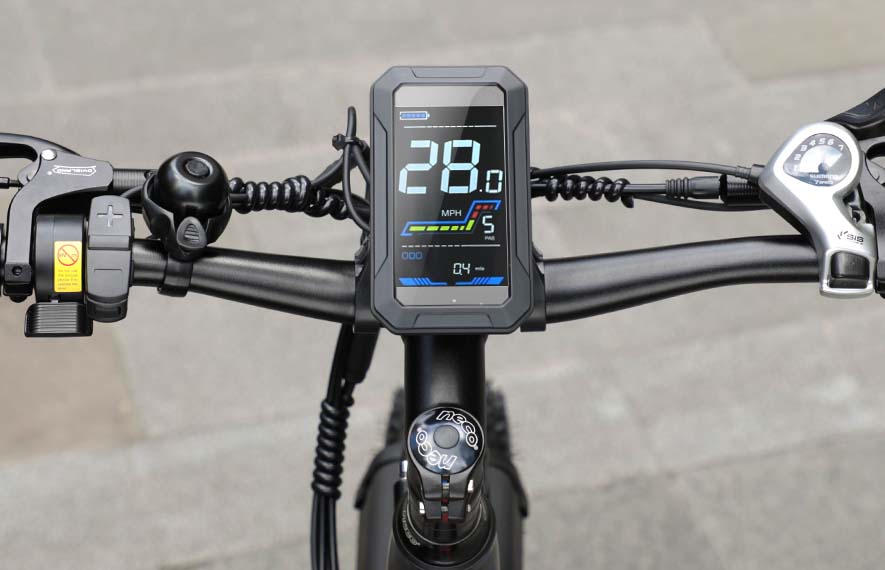

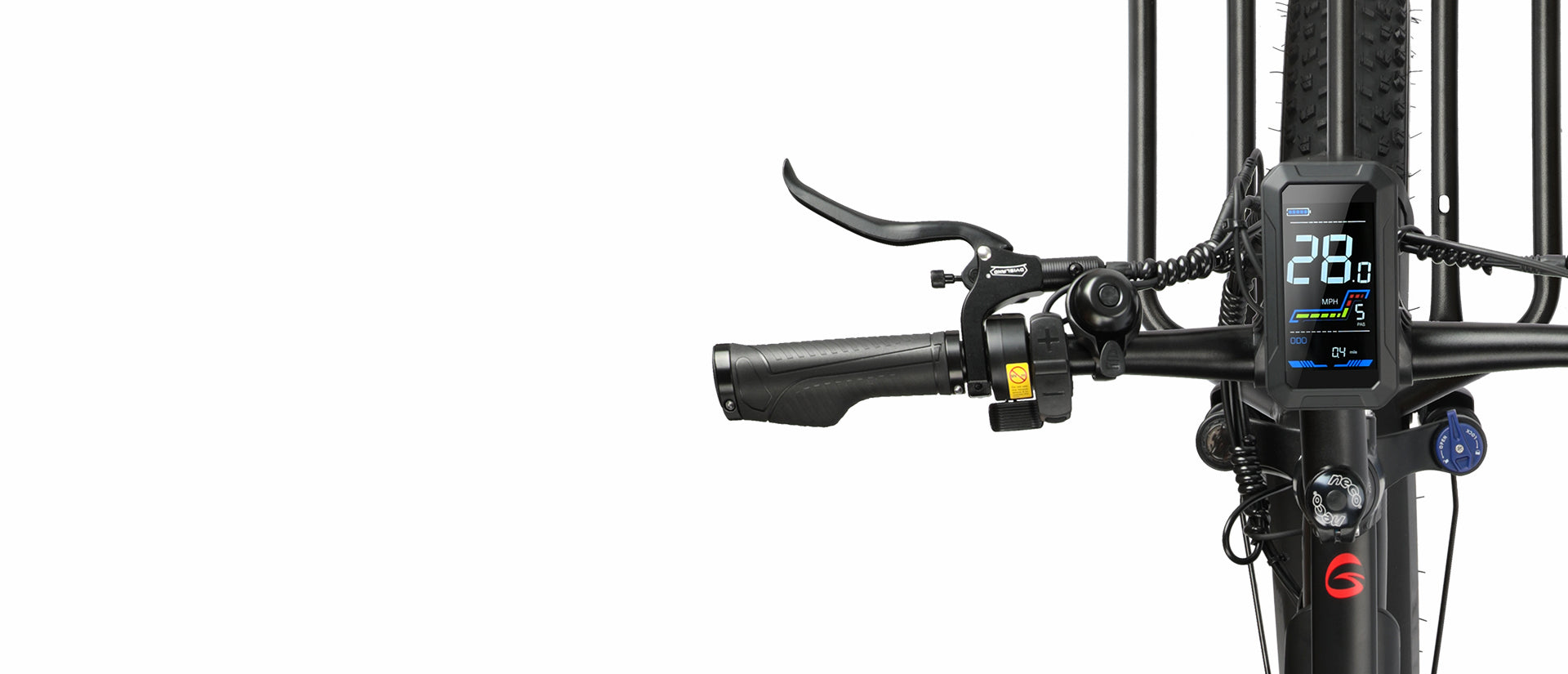

Multifunction Display

Backlight display provides speed, mileage, battery capacity，pedal level，etc.

Battery Capacity A fuel gauge for your e-bike.

Speedometer Display current speed, maximum speed, or average speed.

Odometer Measuring the distance traveled.

Wattmeter Measuring the electric active power.

USB Charging Charge your electronics.

Pedal Assist Level Show pedal assistance level.

Safety

Experience safe and comfortable rides with the Explorer's full suspension, hydraulic brakes, and adjustable front fork. The full suspension provides a smooth ride by absorbing bumps and the hydraulic brakes ensure reliable stopping power. The hydraulic front fork with a lockout is easily adjustable for a perfect ride. Furthermore, this bike is built with IPX6 water resistance standards, making it ready for any weather and allowing you to enjoy your ride rain or shine.

Powerful Riding

The Explorer electric bike is equipped with a powerful 750W hub motor that delivers exceptional torque and reliable performance on any terrain. With its ability to quickly accelerate, this bike will make commuting and tackling steep climbs effortless. Enjoy a smooth and powerful ride every time with the Explorer's 750W motor.

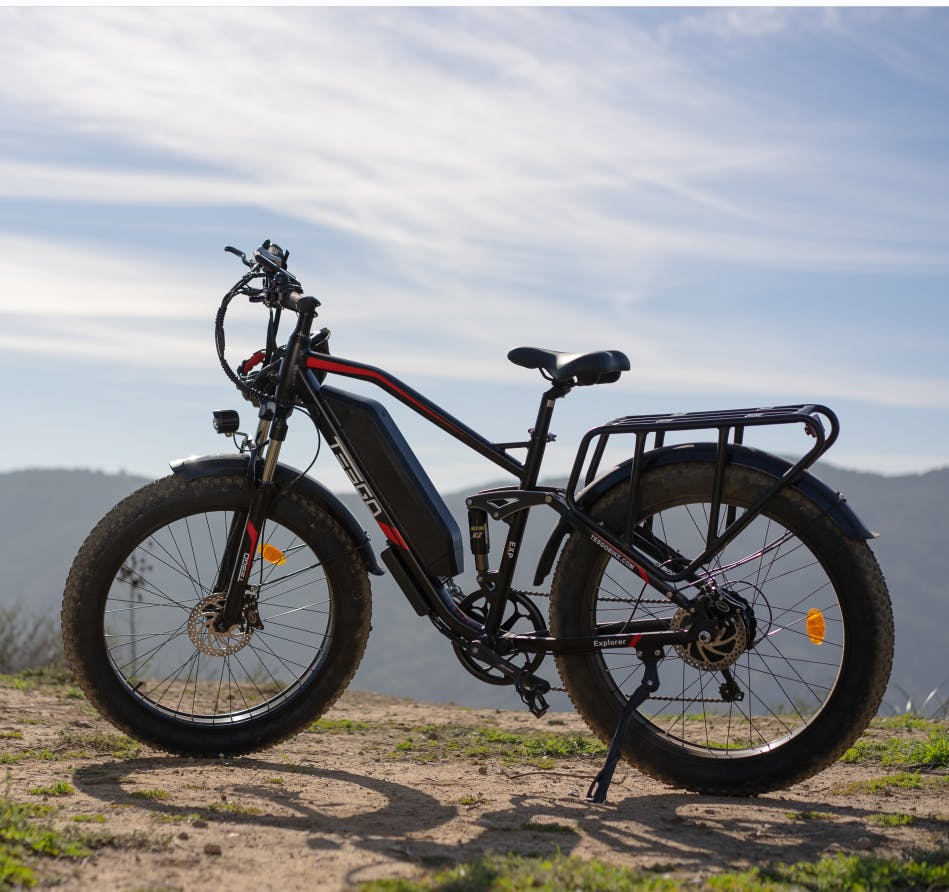

Conquer any terrain

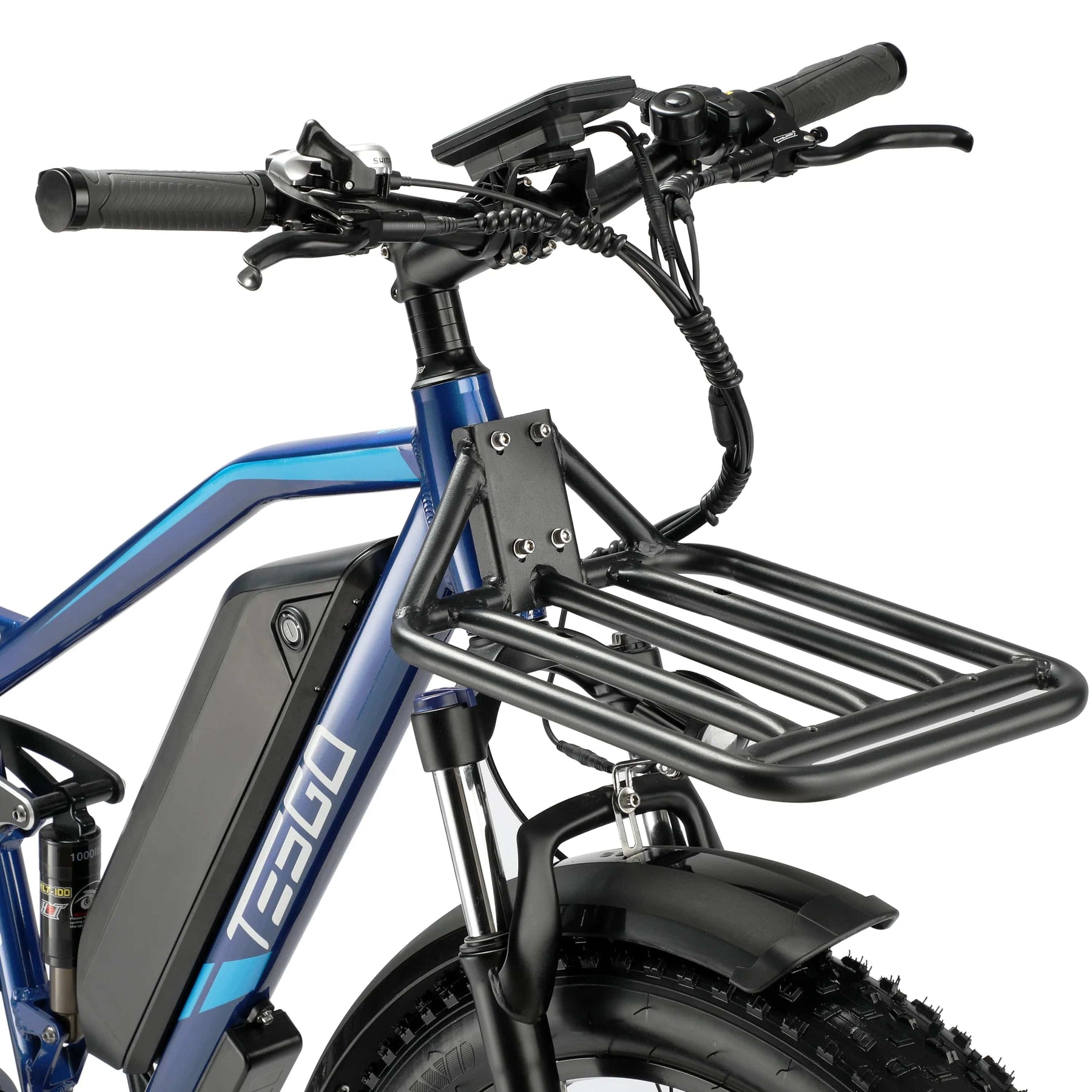

Designed for adventure, this fat-tire e-bike features sturdy front and rear racks and is ready for any terrain thanks to its 26" fat tires which provide excellent traction and stability. Whether you're going on a weekend camping trip or just want to carry a few essentials for your daily commute, the Explorer electric bike has everything you need. So pack up your gear and hit the road, because the Explorer has everything you need for your next adventure.

Ride Without Limits

If you need a full-size e-bike with fat tires the Explorer is your best choice! The bike comes with strong front and rear racks that let you bring all the gear you need with you!

PRODUCT DETAILS

SPECIFICATION
Component
geometry

Weight:66.1 lbs
Derailleur：7-speed Shimano Altus
Recommended Rider Heights:5'4” ~ 6'4”
Hub Motor:750 W
Passenger Weight Limit:350 lbs
Battery Charge Time:7-9 Hours
Battery(LG Cells):48V 17.5Ah (840Wh) Lithium battery
Range:40-70Miles
Charger: US standard 2.0 A smart charger
Controller: 48V/22A
Max Torque: 86 Nm
Top speed:28mph
Display:90T Color LCD Display
Pedal Assist:5 Levels

Tires::26"*4.0" Fat Tire
Front Fork：Front Suspension with Adjustable Lockout
Brake lever:Aluminum alloy levers with motor cutoff switch
Brake Rotors:Front and Rear 160mm
Brake:Dual Piston Hydraulic Brakes
Bike Frame:6061 Aluminium
Chain:KMC chain

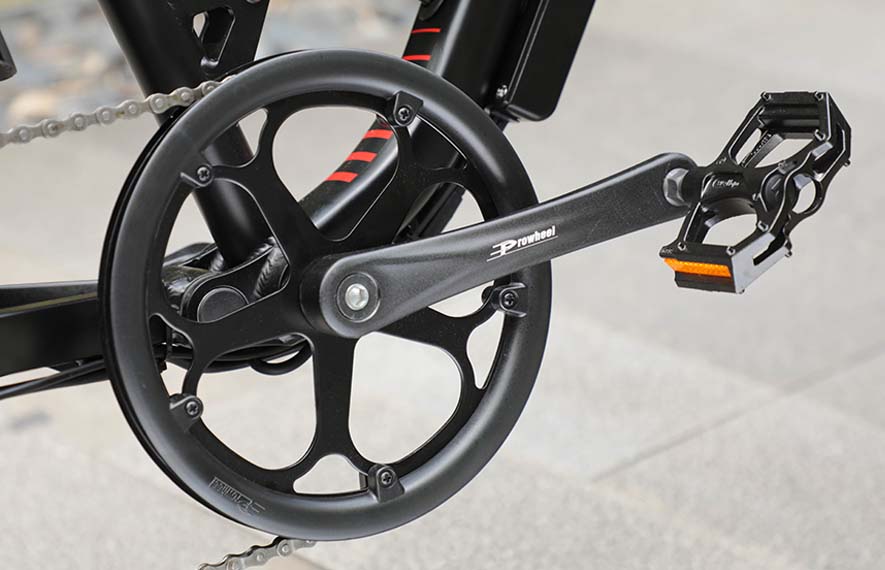

Crank Set:230mm w/52T
Freewheel:Shimano 7 speed gear shift system
Gearing: 14-28T 7-Speed
Rear Light:Reflective light
Pedal:Wellgo Aluminum Platform
Throttle:Thumb Throttle
Front light：48V LED light
Spokes:Double Wall Aluminum 36H Front & Rear
Seat Post:306 mmx27.5 mm

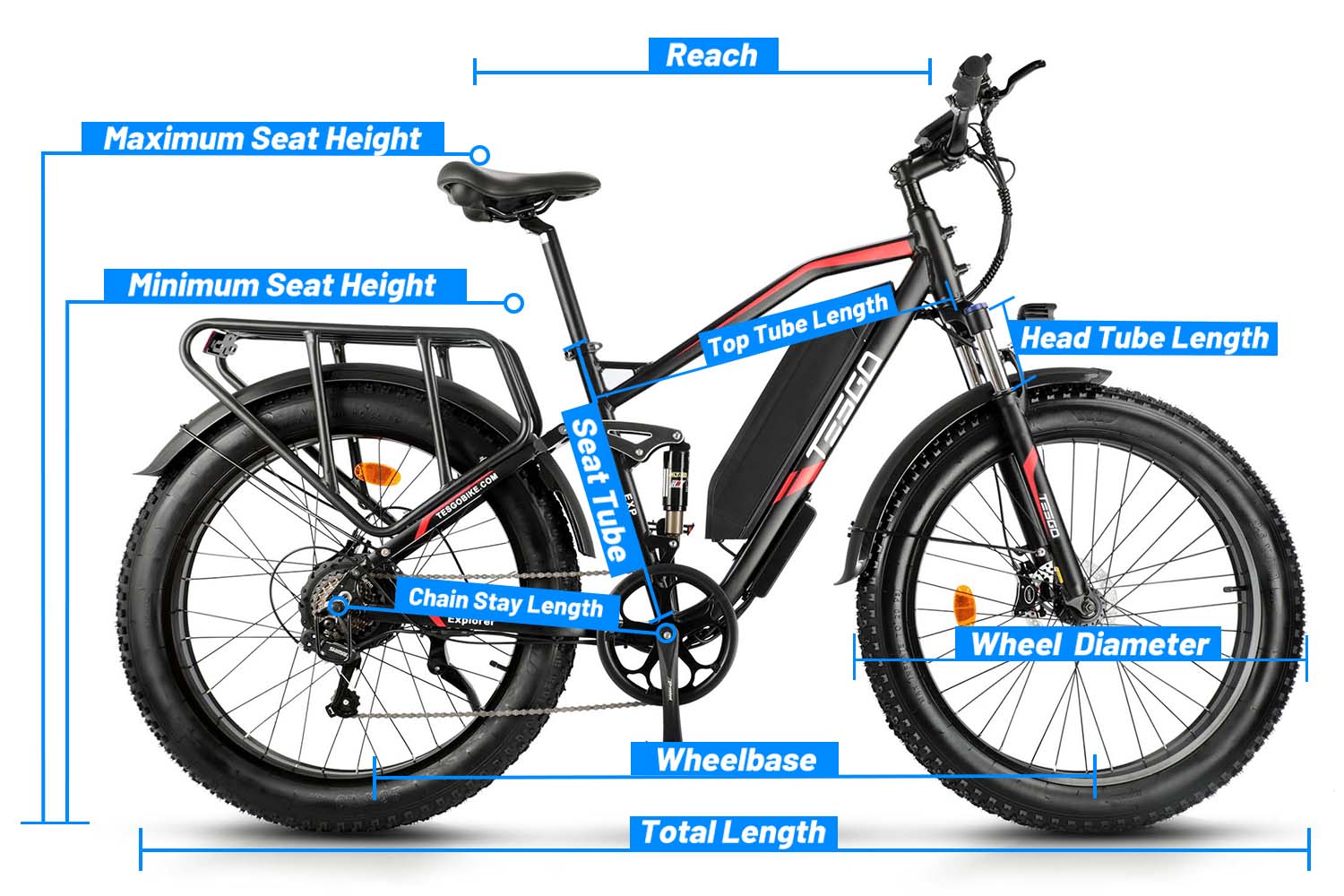

Total Length:82”
Handlebar Height:42.9”
Wheelbase:51.1”
Minimun Seat Height:30.3”
Maximum Seat Height:37”
Chain Stay Length:20”
Standover Height:32”
Top Tube Length:25”
Wheel Diameter:26”
Head Tube Length:5.1”
Handlebar Length:27.6”

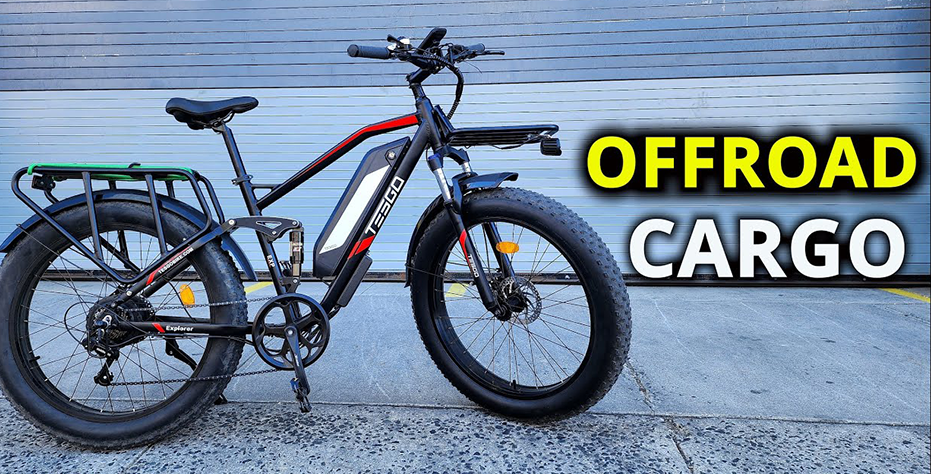

UNBOXING&ASSEMBLY

Download the Manual

DOWNLOAD MANUAL

Yes bike

I got my bike and I was very happy with it and when I texted support they had gotten right back to me very quickly it's a great product however I did not get the two screws that hold my mirror to the bracket they told me I would have to buy new ones and that was the only issue it's a nut that started on both sides that actually holds the mirror to the clamp

Powerful-Smooth-Dependable

Bought this and rode it for 3 weeks straight every day for hours. Climbs hills with ease as well as brakes just as efficient coming down them as well. Battery life is as good as can be expected. Hey it's fun, safe and safes a lot of gas amen to that.

The E bike is well made i enjoy it very much

After riding for several months

I've tested 1000 miles on this EXP before I decided to leave a review, the ebike is really well built and use high-quality material, you can tell by just laying your eyes on it. It is fast and powerful! Highly recommend.

Battery lasts longer than I expected

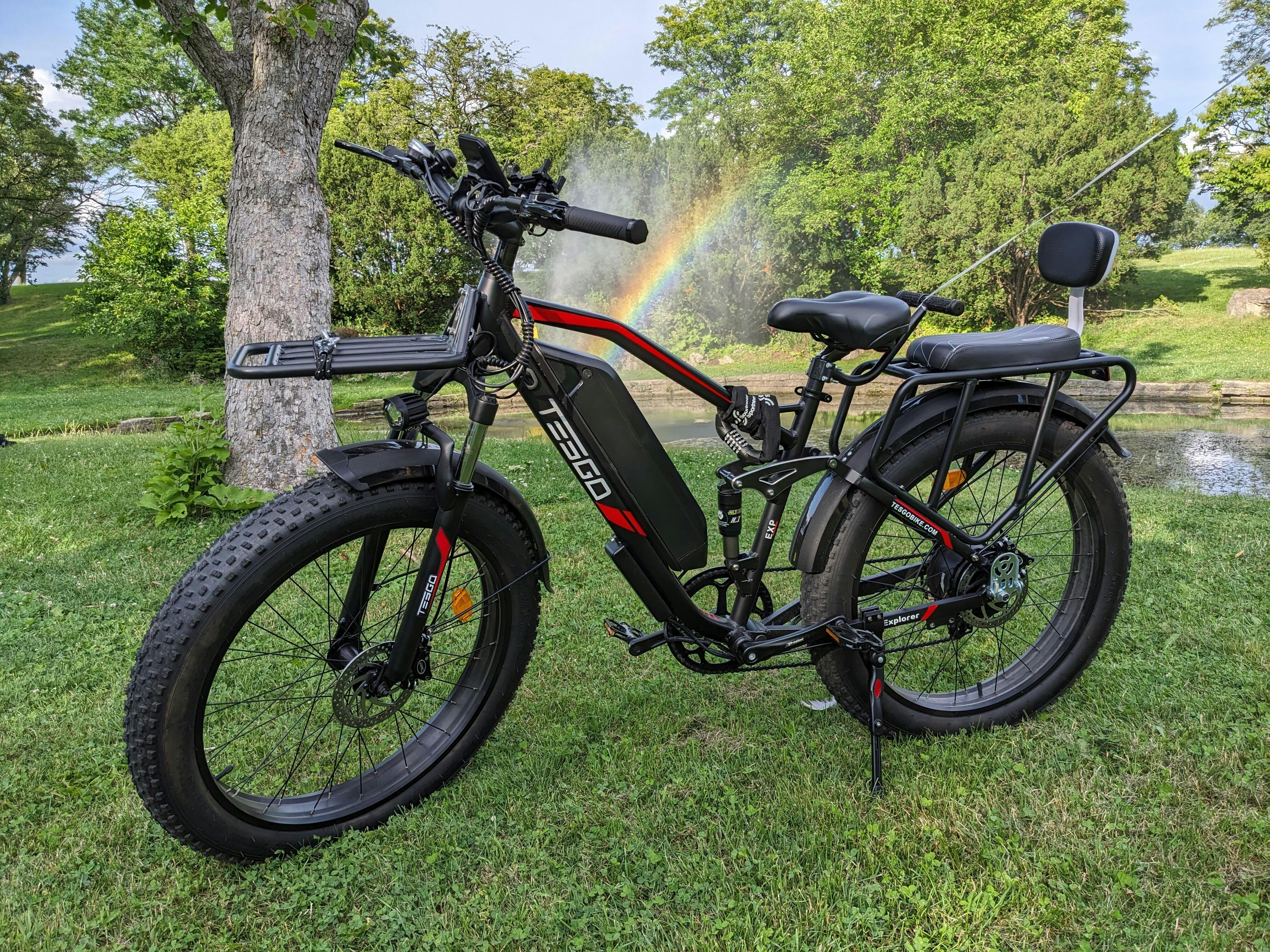

Great battery life and well-built. I would recommend it as the best option for both commuters and joyriders. Picture attached.

1 2 3

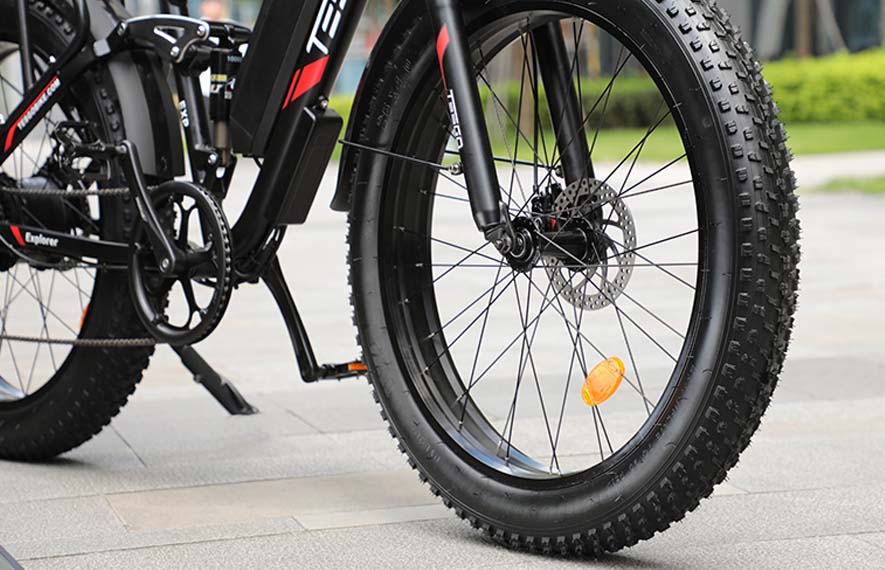

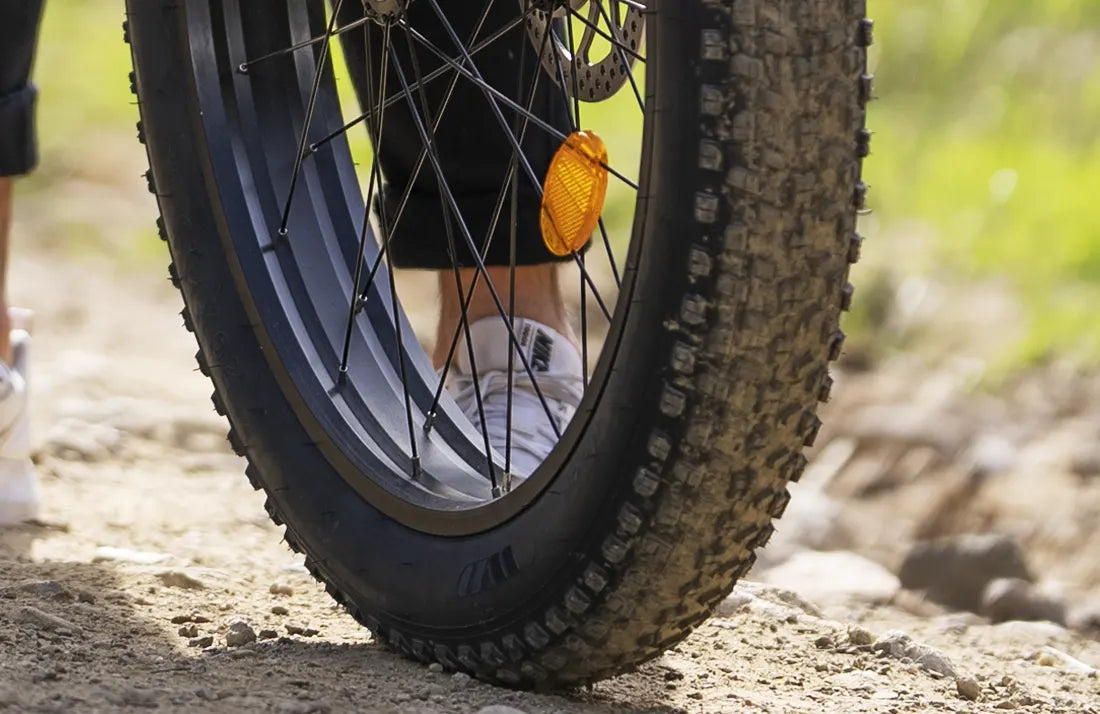

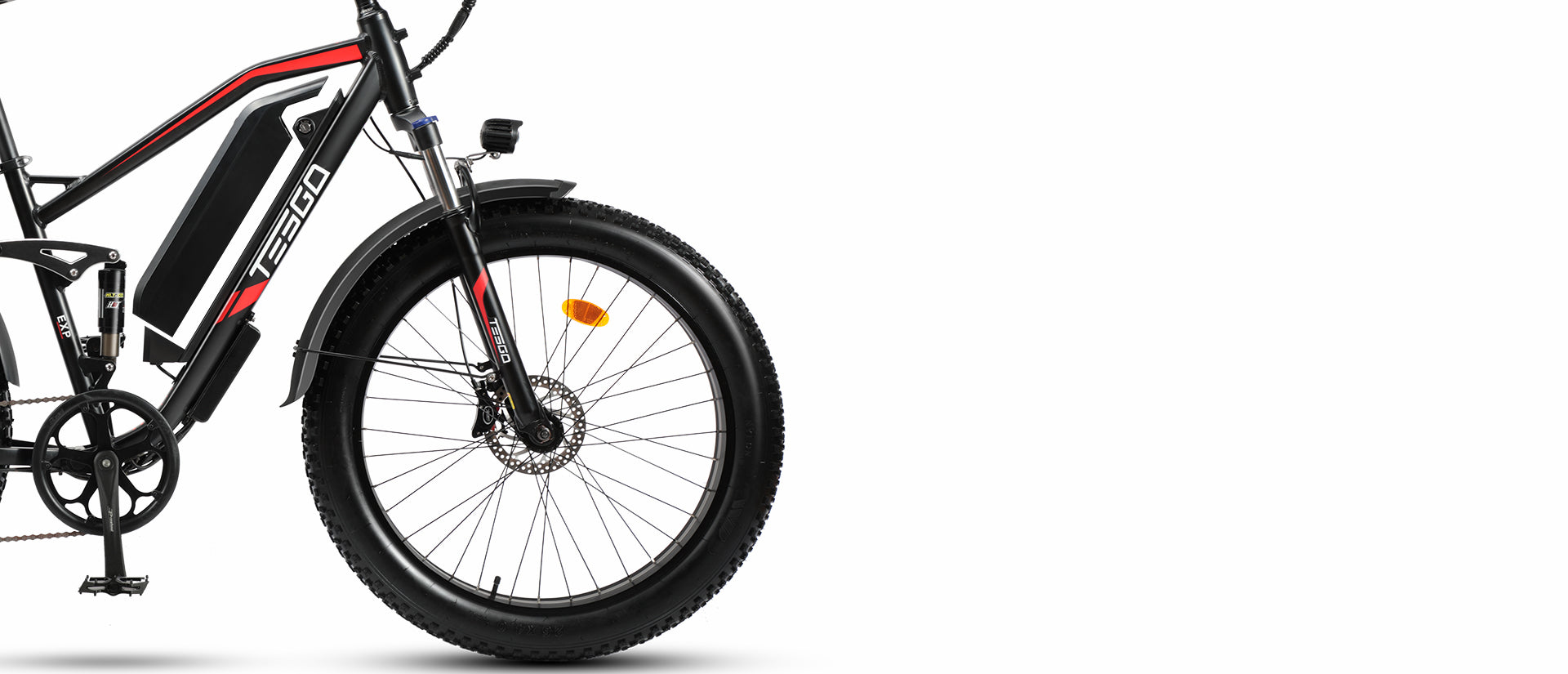

26x4" Fat Tires

Fat tires accompany the front suspension and provide excellent grip and outstanding damping characteristics.

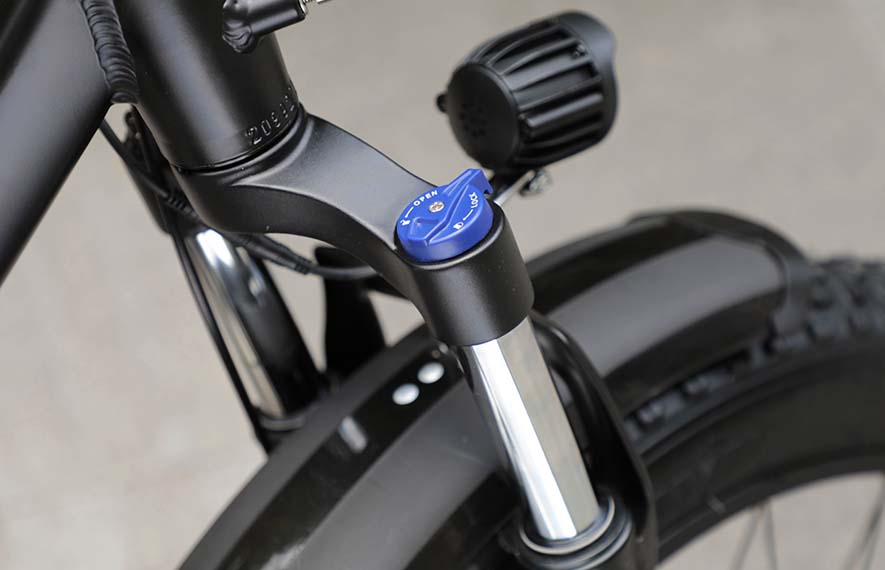

Hydraulic Fork

The 80 mm front fork is adjustable, has a lockout, and supports you when riding in difficult terrain.

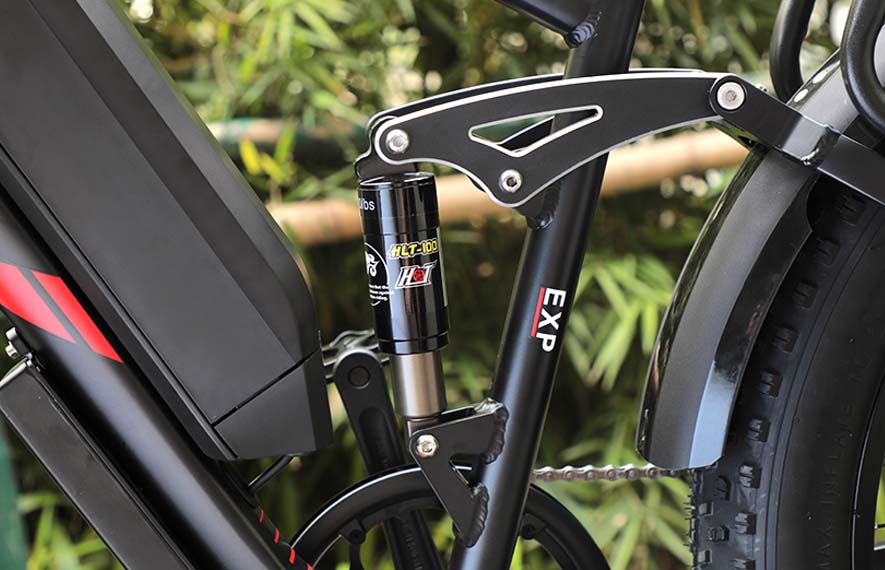

Rear Four-Link Suspension

The four-link suspension has the shape of a quadrilateral, consisting of the parts chainstay, seatstay, rocker and seat tube. Together, these parts absorb the rearward forces and vibrations, making the bike stable and easy to control.

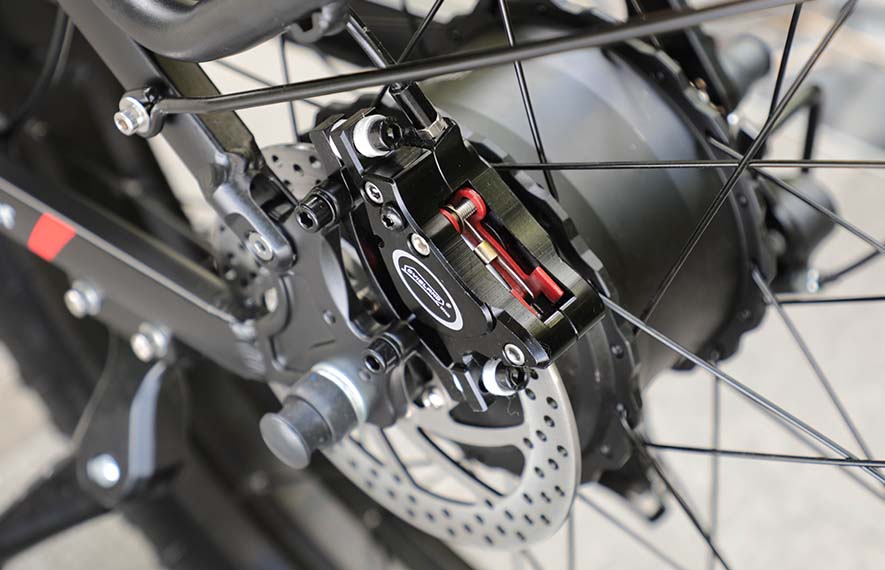

Hydraulic Brakes

Hydraulic brakes provide superior stopping power and respond to light touch in all weather conditions. Maximum control on uneven, technical terrain.

LED Headlight

A bright 48V headlight is controlled by the display and can automatically adapt to daylight.

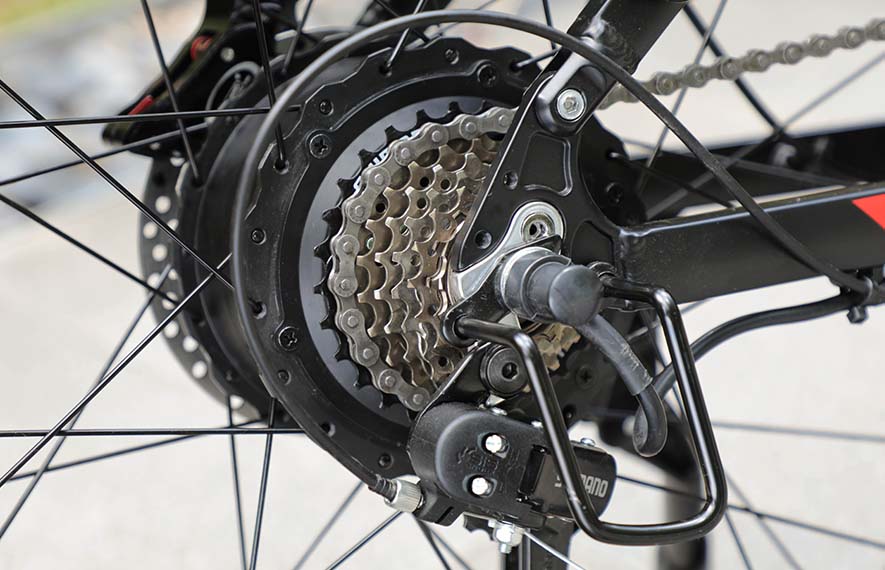

7-speed Shimano System

The Explorer has a 7-speed shift system that makes it easy to adapt to inclines, apartment descents, or stop-and-go outdoor driving.

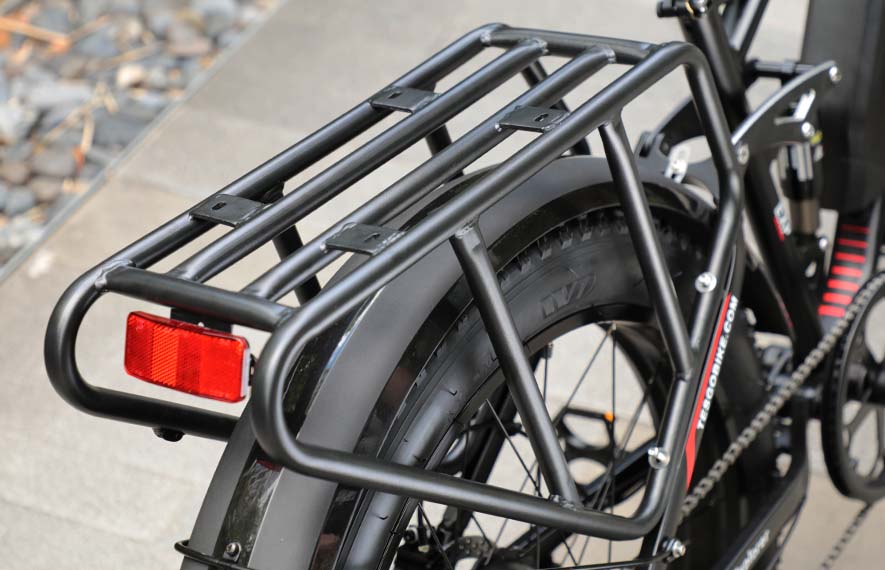

Rear rack

A sturdy rear rack that can carry up to 130 pounds of weight provides ample space for all your essentials. The rack is built for durability and ease of use, so you can enjoy a hassle-free ride every time.

Backlit Color Display

LCD with USB charging. The display provides accurate data such as assistance level, speed, battery charge, distance, and more. Don't be afraid to ride the fat tire e-bike even in the rain, it's completely waterproof.

12 Magnetic Speed Sensor

A 12-magnetic speed sensor detects an e-bike's speed. It has a magnet on the wheel and a sensor that detects it as it passes.

FAQ

Do my height and weight fit the Explorer?

The recommended height for riders is 5'3" ~ 6'4", and the maximum load of the Explorer is 350 lbs.

What is the top speed of the Tesgo Explorer

It can reach up to 28 mph.

How to assemble the Explorer？

Please follow the instruction from our unboxing and assembly video.

When will my Explorer e-bike be delivered?

We ship free within 5-7 business days to the lower 48 states and do not ship to PO and APO boxes. For more information, visit our shipping policy.

Should I fully discharge the battery before charging?

No, you should not. Our batteries have built-in mechanisms that protect them from overcharging.
