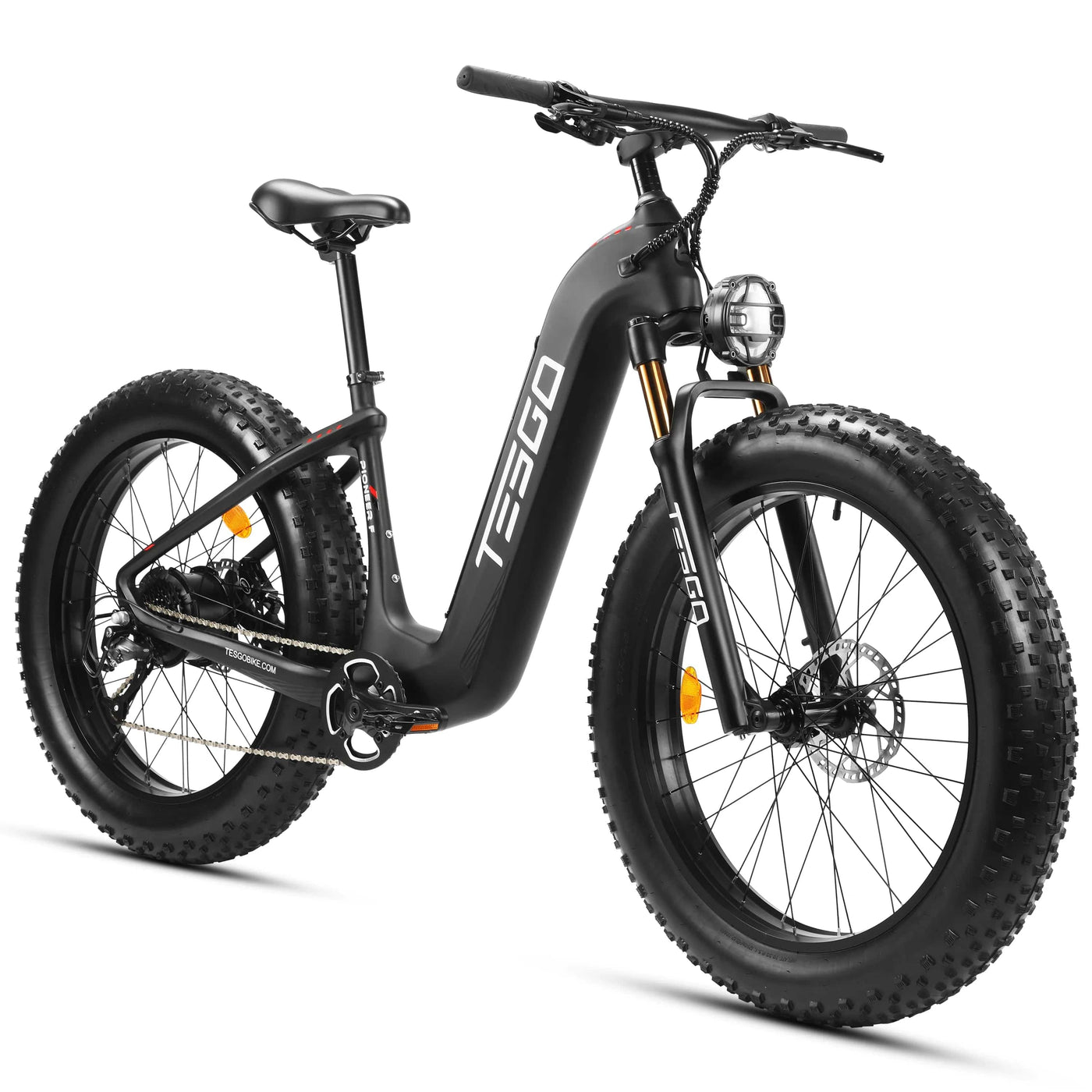

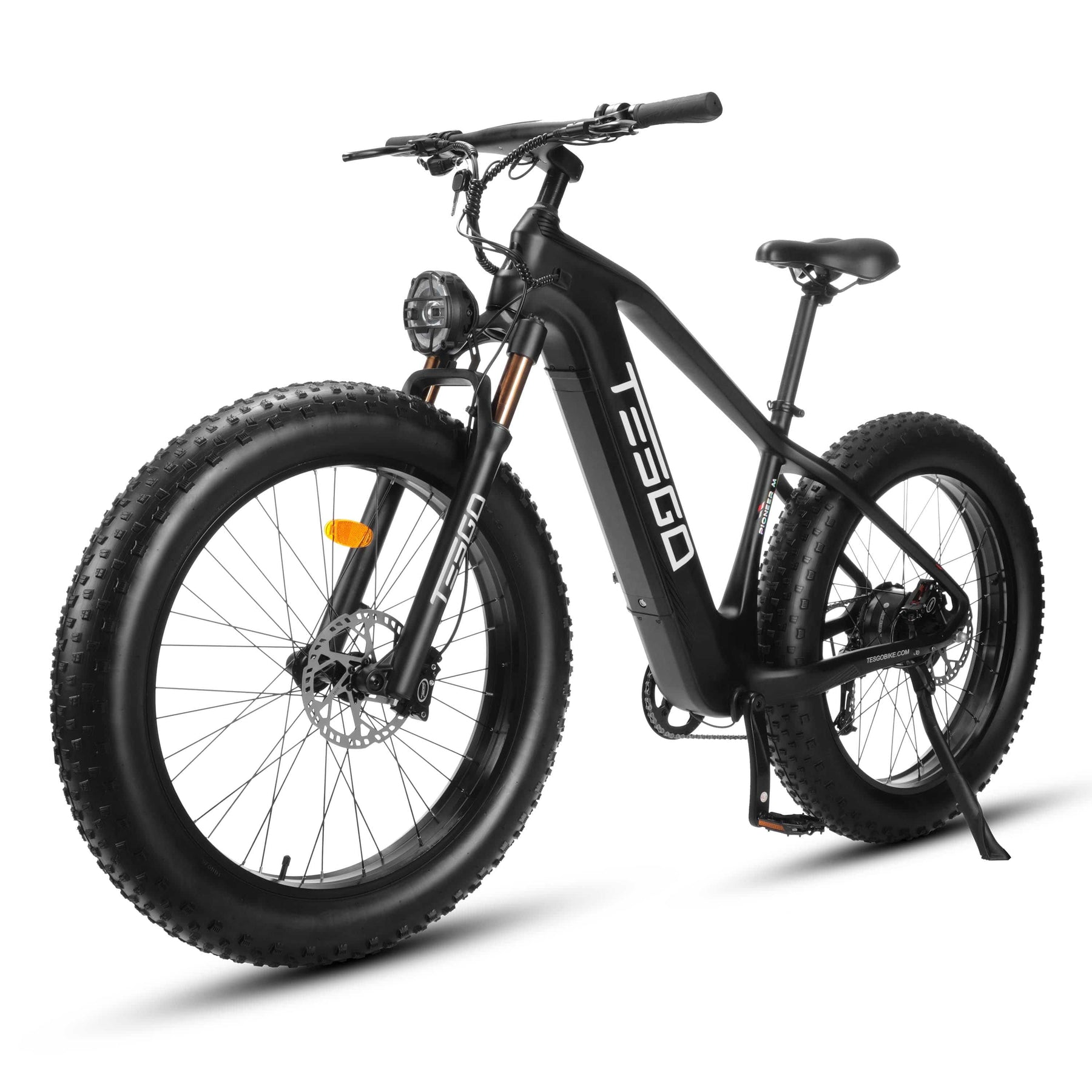

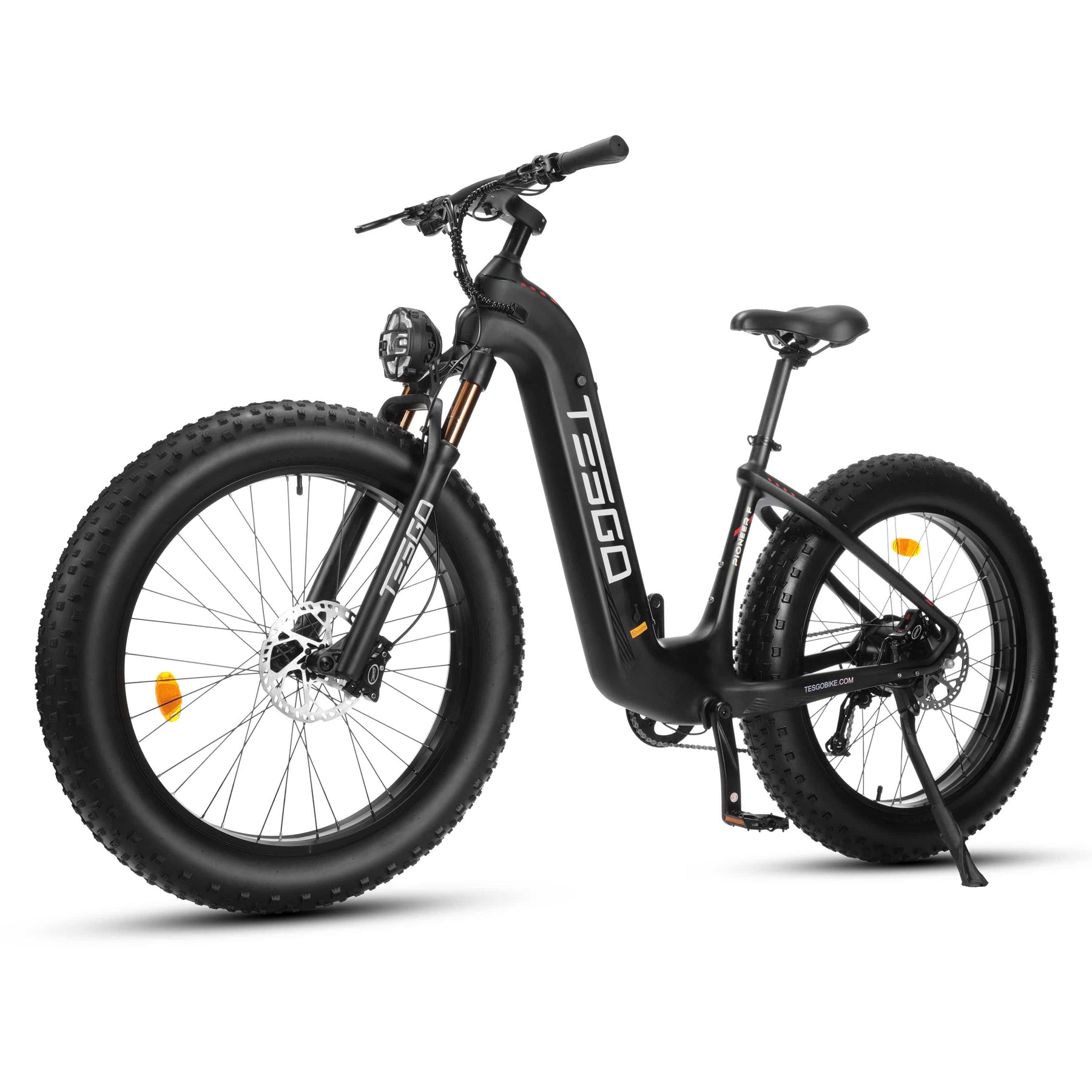

Name: Tesgo Pioneer - Step Thru
Brand: Tesgo
SKU: TS-Pioneer-Step Thru
Price: 1999.0 USD
Availability: InStock

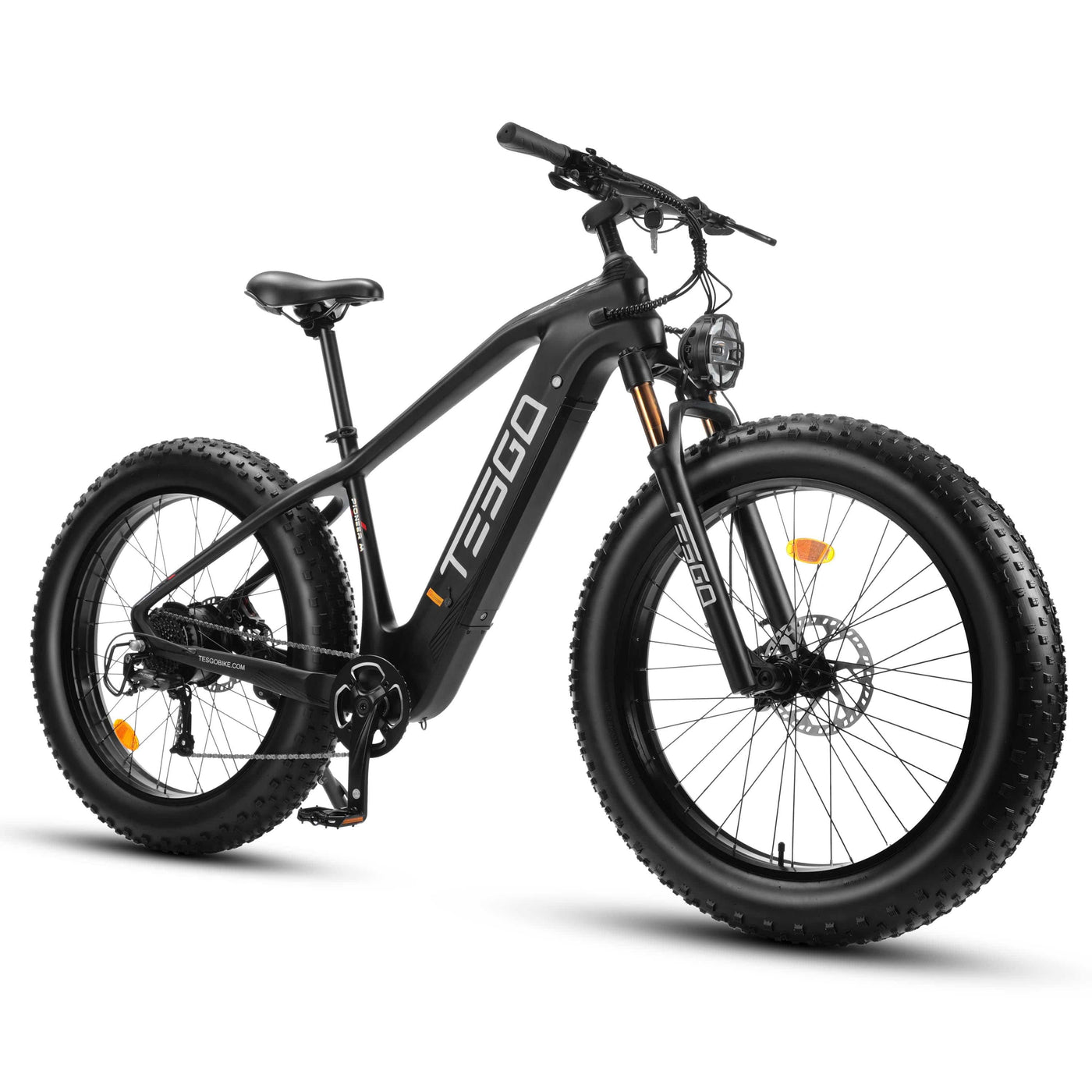

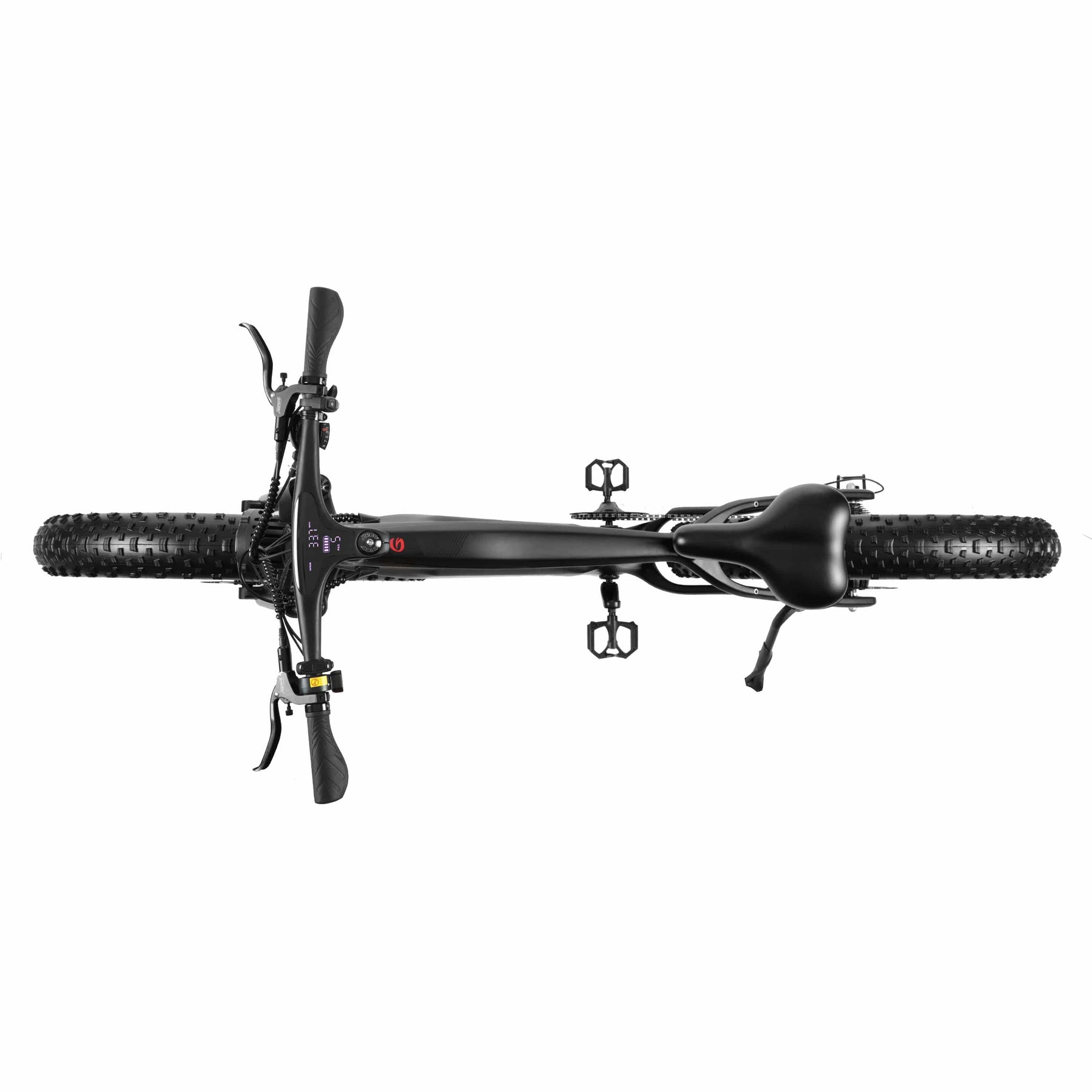

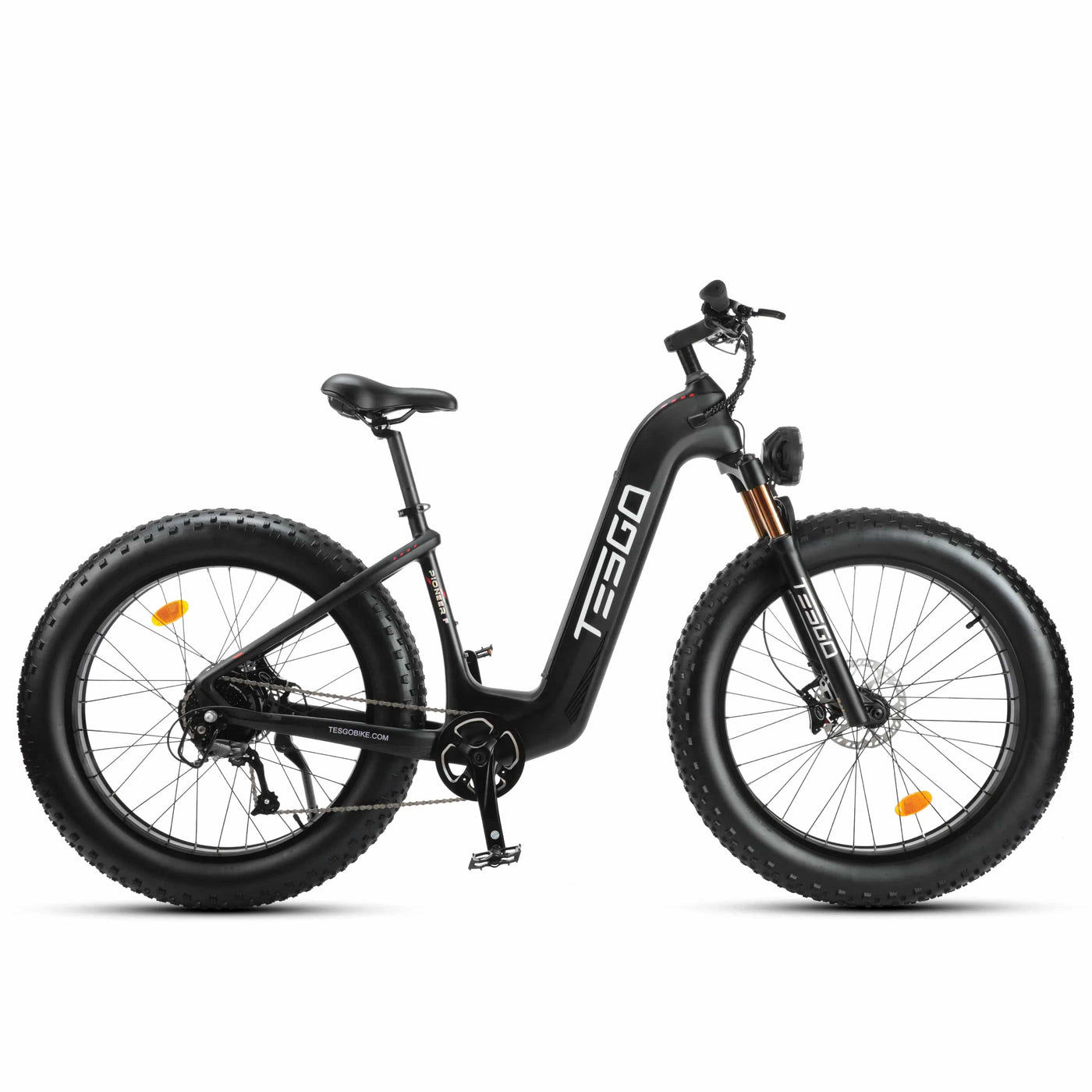

Tesgo Bicycles Tesgo Pioneer - Step Thru

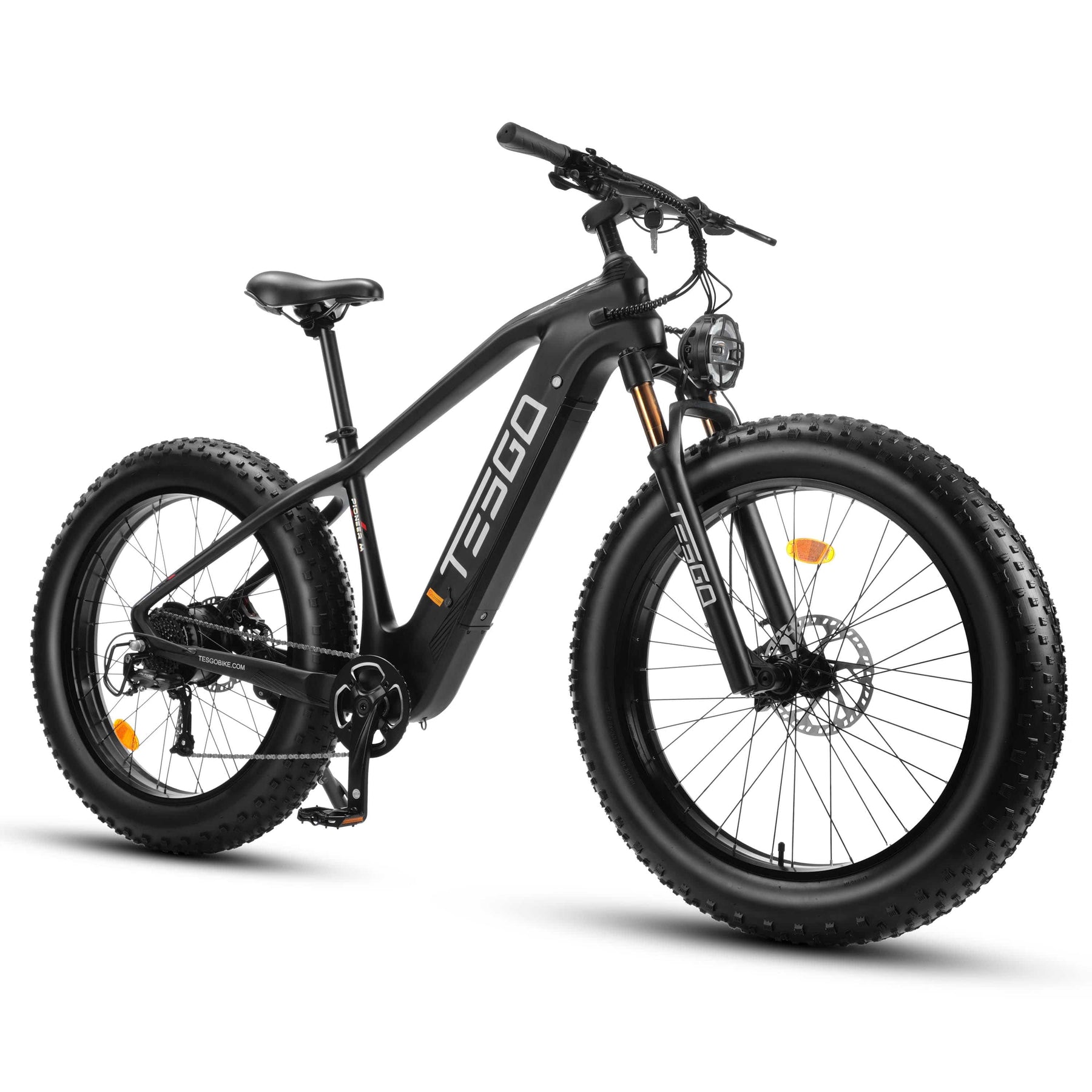

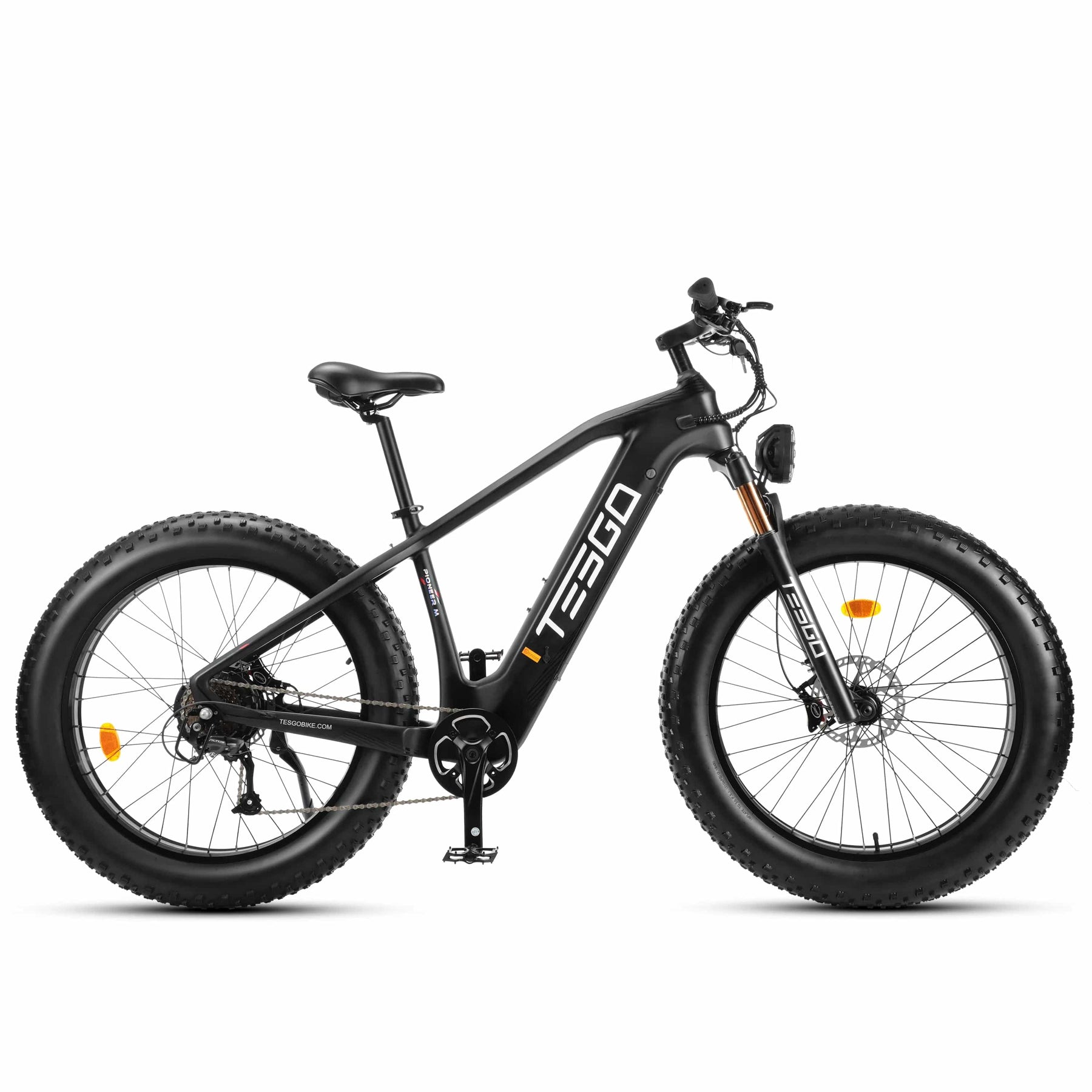

Tesgo Bicycles Step Over Tesgo Pioneer - Step Thru

$1,999.00 $2,499.00

Tax included.

Style

Step Thru

Step Over

Low stock - 3 items left
Inventory on the way

Free Shipping
1-Year Warranty
14-Day Returns
Lifetime Support

We ship e-bikes (accessories are not included) free within 5-7 business days to the lower 48 states and do not ship to PO and APO boxes. For more information, visit our shipping policy.

Tesgo e-bikes have a 1-year warranty against all manufacturing defects from the date of delivery (free accessories are not covered). For more information, visit our warranty policy.

If for any reason you are unsure if the Tesgo e-bike is right for you, we will take it back. Just let us know within 14 days and we will cover full shipping costs if there are any problems with the e-bike. For more information, visit our return policy

We're here to help - contact us for any reason.

[{"id":40943434891357,"title":"Step Thru","option1":"Step Thru","option2":null,"option3":null,"sku":"TS-Pioneer-Step Thru","requires_shipping":true,"taxable":false,"featured_image":{"id":33330000855133,"product_id":7068983787613,"position":1,"created_at":"2023-07-24T03:24:22-05:00","updated_at":"2023-07-25T22:45:03-05:00","alt":"Tesgo Pioneer - Step Thru Tesgo","width":3000,"height":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-pioneer-step-thru-32872057569373.webp?v=1690343103","variant_ids":[40943434891357]},"available":true,"name":"Tesgo Pioneer - Step Thru - Step Thru","public_title":"Step Thru","options":["Step Thru"],"price":199900,"weight":30000,"compare_at_price":249900,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Tesgo Pioneer - Step Thru Tesgo","id":25640856027229,"position":1,"preview_image":{"aspect_ratio":1.0,"height":3000,"width":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-pioneer-step-thru-32872057569373.webp?v=1690343103"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40943434924125,"title":"Step Over","option1":"Step Over","option2":null,"option3":null,"sku":"TS-Pioneer-Step Over","requires_shipping":true,"taxable":false,"featured_image":{"id":33330008293469,"product_id":7068983787613,"position":5,"created_at":"2023-07-24T03:27:14-05:00","updated_at":"2023-07-24T03:27:14-05:00","alt":"Tesgo Bicycles Step Over Tesgo Pioneer - Step Thru","width":3000,"height":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-pioneer-step-thru-32872058519645.webp?v=1690187234","variant_ids":[40943434924125]},"available":false,"name":"Tesgo Pioneer - Step Thru - Step Over","public_title":"Step Over","options":["Step Over"],"price":219900,"weight":30000,"compare_at_price":249900,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"Tesgo Bicycles Step Over Tesgo Pioneer - Step Thru","id":25640863498333,"position":5,"preview_image":{"aspect_ratio":1.0,"height":3000,"width":3000,"src":"\/\/www.tesgobike.com\/cdn\/shop\/files\/tesgo-tesgo-pioneer-step-thru-32872058519645.webp?v=1690187234"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

OFF ROAD
conquer all terrain

1000W

Powerful Motor

35-60 miles

Extended Range

95 Nm

Max Torque

48V 20Ah

UL Certified Battery

31 Mph

Top Speed

380 Lbs

Max Load

Overview
Details
How to Install
Reviews

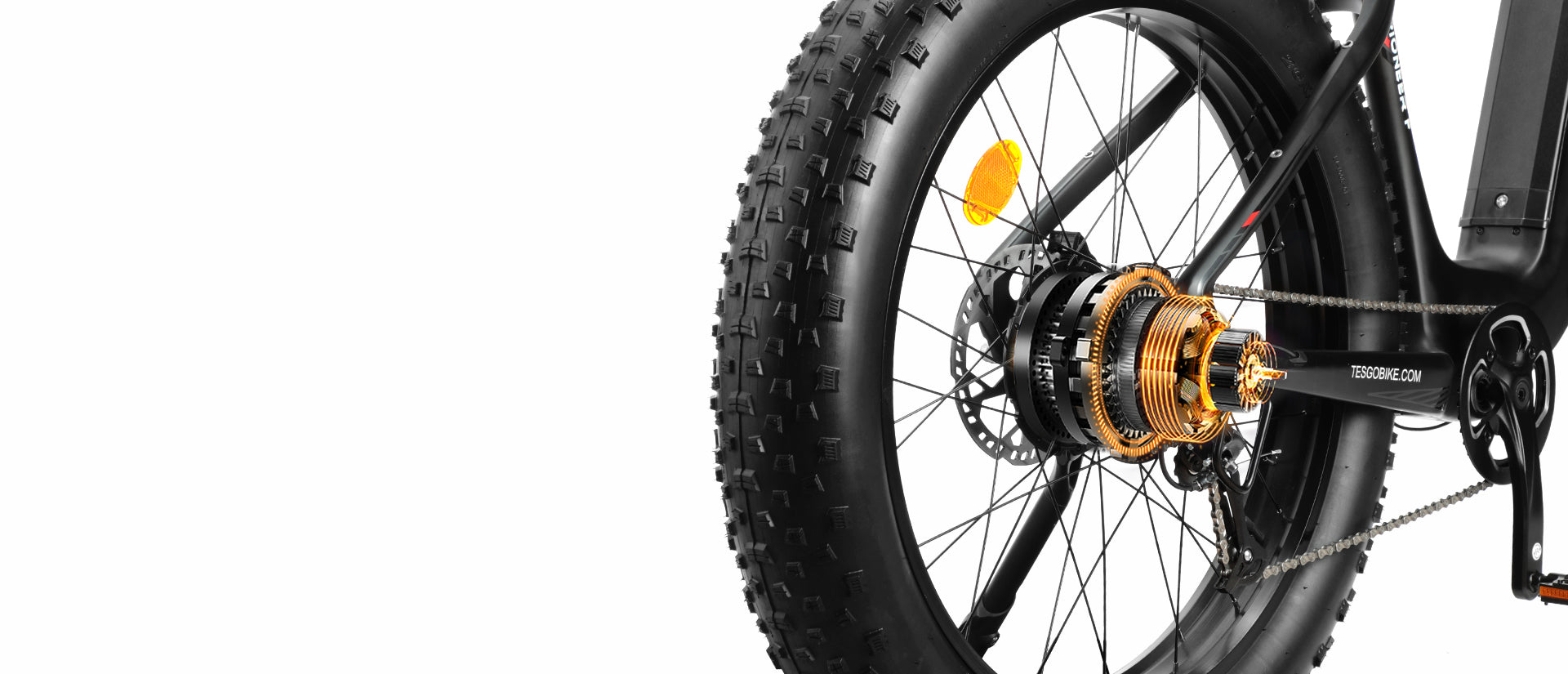

Powerful 1000W Motor.

The Pioneer gives you the ultimate riding experience. With the powerful 1000W rear motor, you can climb hills faster and gain speed quicker.

1000W Motor Torque

95Nm Motor Torque

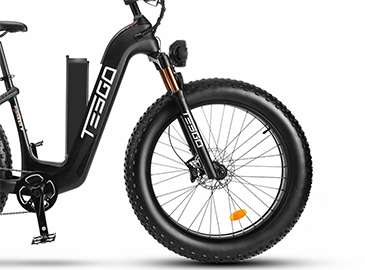

Ride More. Charge Less.

We wanted a power source that allowed for longer rides.We decided to use 48v Samsung batteries.These batteries have 20AH which provide enough capacity to face whatever round trips. The detachable design for battery makes charging simple.

35-60 Miles Per Charge

960 Wh Battery Capacity

Multifunction Display

Backlight display provides speed, mileage, battery capacity，pedal level，etc.

Battery Capacity A fuel gauge for your e-bike.

Odometer Measuring the distance travelled.

Speedometer Display current speed, maximum speed, or average speed.

Wattmeter Measuring the electric active power.

USB Charging Charge your electronics.

Pedal Assist Level Show pedal assistance level.

Carbon fiber frame

Pioneer uses the carbon fiber frame which keeps the bike from being too heavy and gives it better damping and rigidity than aluminum-framed bikes.

Safety

Riding in any weather is a breeze with the Pioneer electric bike, which is water-resistant and has hydraulic brakes. The water-resistant feature ensures your bike stays dry, while the hydraulic brakes provide excellent stopping power regardless of weather conditions. Enjoy a safe and comfortable ride with the Tesgo Pioneer e-bike.

Powerful motor

The Pioneer electric bike offers a thrilling ride experience with its powerful 1000W motor. Not only does this motor provide effortless riding on any terrain, but it also allows for quick acceleration, making it ideal for thrill-seekers and outdoor enthusiasts. Enjoy the unmatched power and speed of the Tesgo Pioneer e-bike and conquer any terrain with ease.

conquer any terrain

Designed for adventure, this fat-tire e-bike features sturdy front and rear racks and is ready for any terrain thanks to its 26" fat tires which provide excellent traction and stability.

PRODUCT DETAILS

SPECIFICATION
Component
geometry

Weight:63 lbs
Derailleur：9-speed Shimano Altus
Recommended Rider Heights:5'5” ~ 6'5”
Hub Motor:1000 W
Passenger Weight Limit:380 lbs
Battery Charge Time:6-8 Hours
Battery(Samsung Cells):48V 20Ah (960Wh) Samsung battery
Range:35-60Miles
Charger: 3.0 A smart charger
Controller: 48V/30A
Max Torque: 95 Nm
Top speed:31mph
Display:LCD
Pedal Assist:5 Levels

Tires:26"x4.8"Fat Tire
Front Fork：Front Suspension with Adjustable Lockout
Brake lever:Aluminum alloy levers with motor cutoff switch
Brake Rotors:Front 180mm and Rear 180mm
Brake：Dual Piston Hydraulic Brakes
Bike Frame:Carbon Fiber
Chain:KMC chain

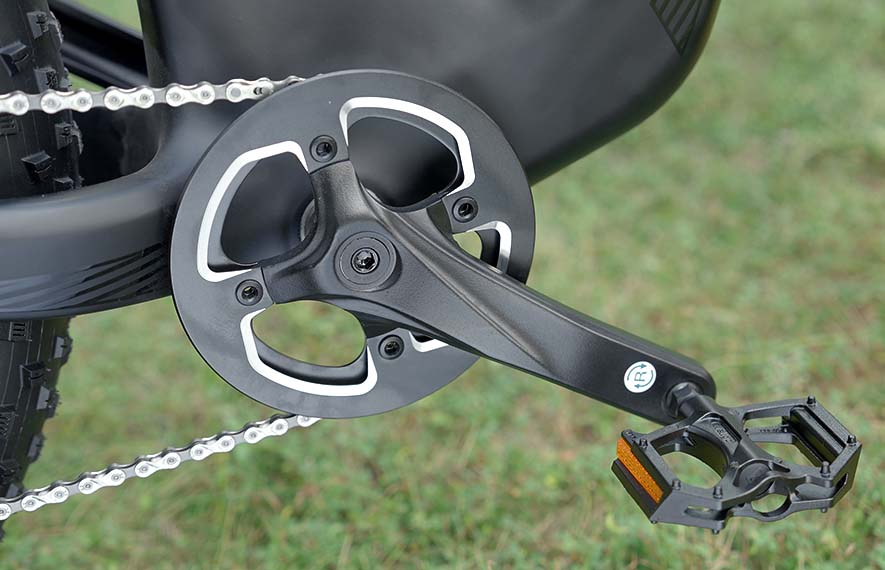

Crank Set:220mm w/38T
Freewheel:Shimano 9 speed gear shift system
Gearing: 11-32T 9-Speed
Pedal:Wellgo Aluminum Platform
Throttle:Thumb Throttle
Front light：Motor LED light
Spokes:Double Wall Magnesium Alloy Wheels

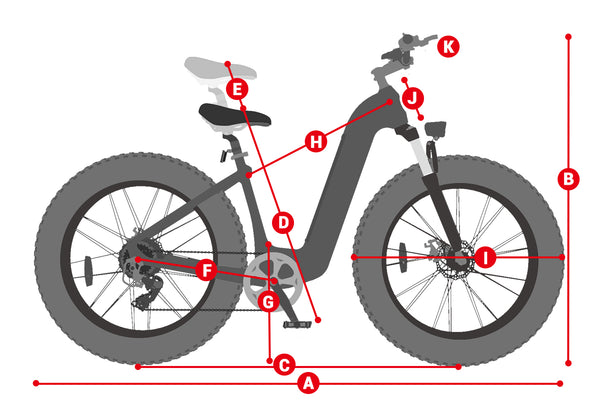

Total Length(A):77.9”
Handlebar Height(B):43.9”
Wheelbase(C):48.2”
Minimun Seat Height(D):35”
Maximum Seat Height(E):39.7”
Chain Stay Length(F):19.68”
Standover Height(G):15.74”
Top Tube Length(F):21”
Head Tube Length(J):5.9”
Handlebar Length(K):27”

UNBOXING Video

Great handling and suspension.

Used it on gravel roads and performed well. Great handling and suspension, extremely powerful.

fun to ride

Awesome bike fun to ride easy to assemble best product packaging i have ever seen !!!

Light and powerful

Came very well package and easy to assemble. There is a small silver button below the battery that must be pushed. This bike really takes off in the higher assist modes which makes it exciting to ride brakes are good and it's comfortable to ride I run 10 psi in the tires with 14 oz of flat out just in case. Just wish it ha torque assist to smothe out the great power in level 4 and
5. Battery life has been great. Really enjoying the step through design. This bike I find myself busy shift
Ing the gears. And
The assist buttons a lot, but that also makes it fun and exciting to ride.

Good but not perfect

This ebike is really awesome the speed is very accurate I weigh 200 pounds and it gets me going 30-32 mph and the build of this bike is very nice but would be more better with rear suspension and the range is okay the first battery bar last about 10 to 13 miles and then the second only last about 2 miles not sure why it’s like that and lastly these tires on this bike get flats easy the first day I got the bikes and took them out I got a flat front and back so I recommend buying something to protect the inner tube besides that great bike

Nice ebike option

Really cheap price for real carbon ebike and all works well.

1 2

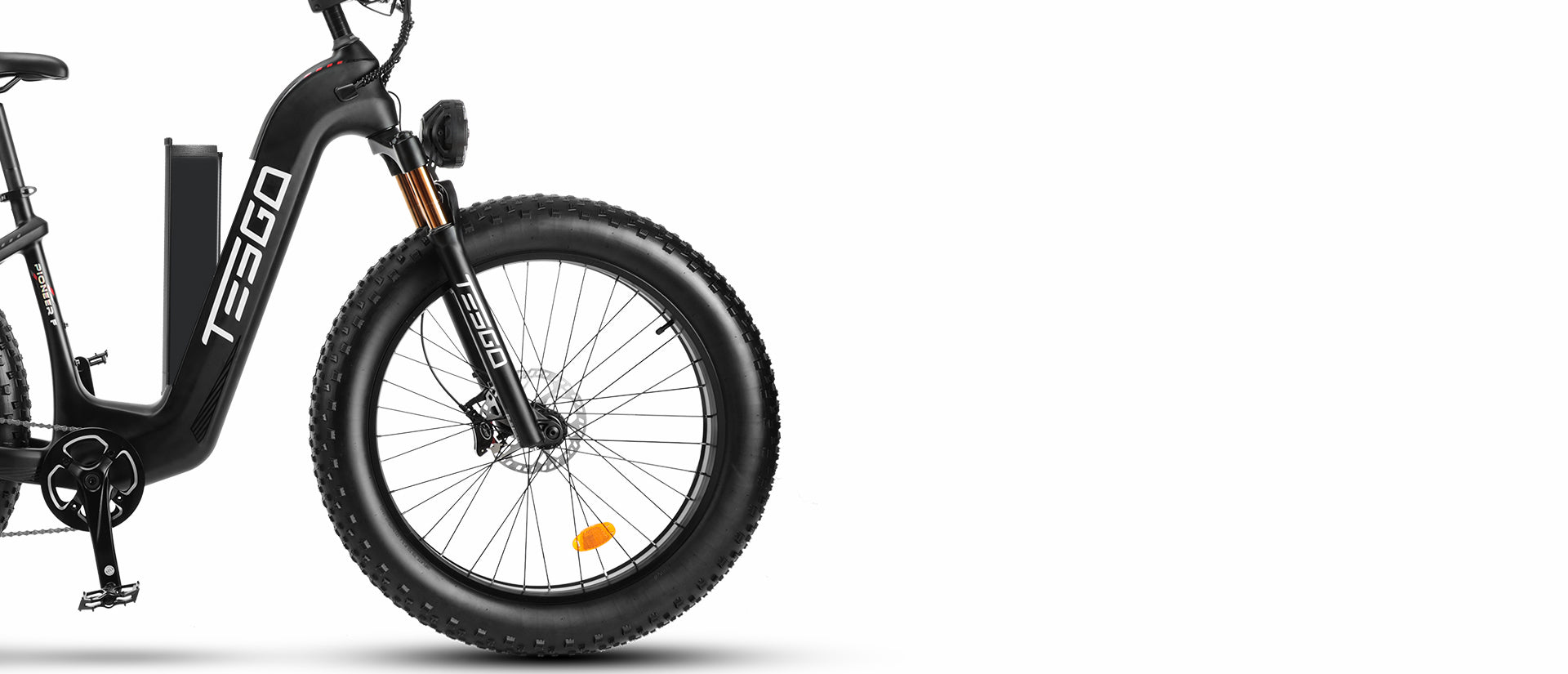

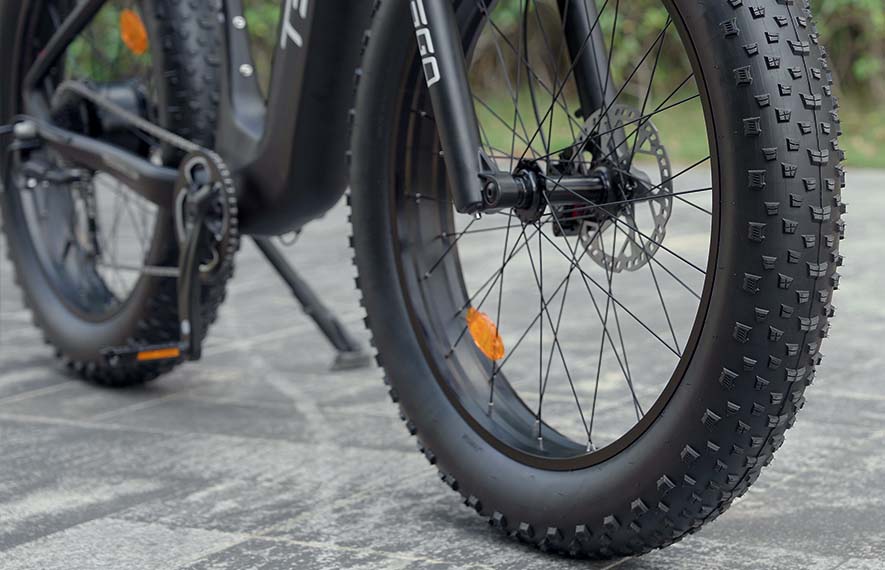

26”x4.8” Inch Fat Tires

26" x 4.8" Inch wheels provide even more grip and greater shock absorption than you'd normally get with fat tire bikes.

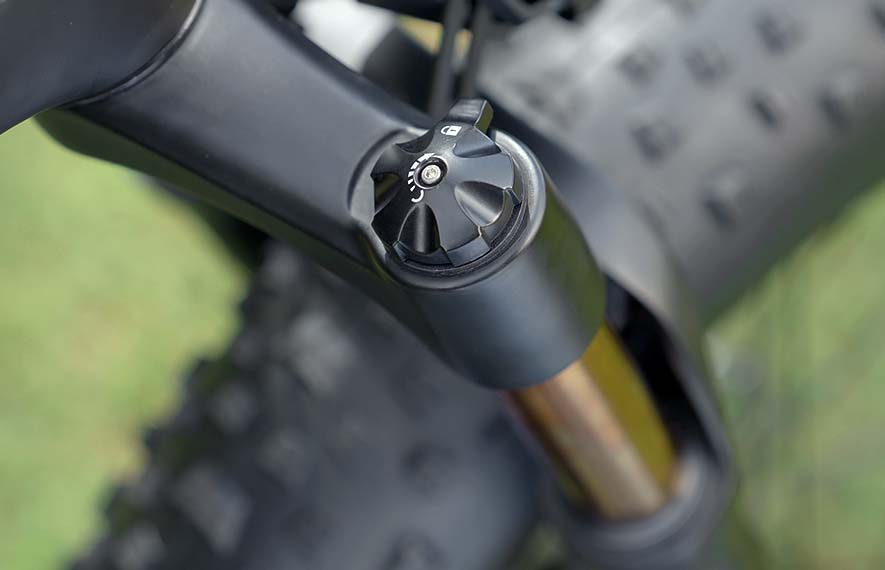

Front Fork：Hydraulic Suspension

The suspension fork has a lock-out lever and preloaded settings for the spring's stiffness to keep you in control in any situation.

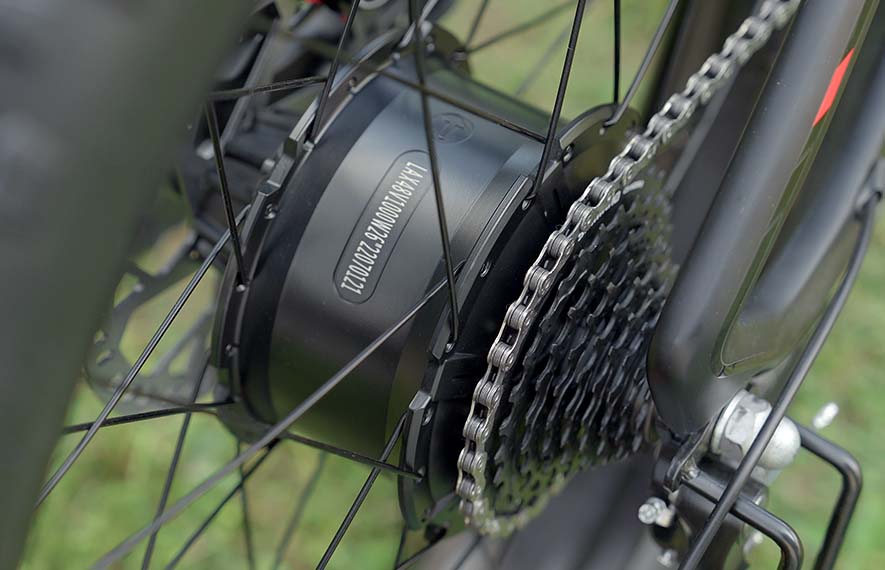

Shimano 9 Speed Gear Shift System

The Pioneer has a 9-gear shift system, which makes it easier to respond to uphill riding situations, downhill flat plane or shape, or stop-and-go riding outdoors.

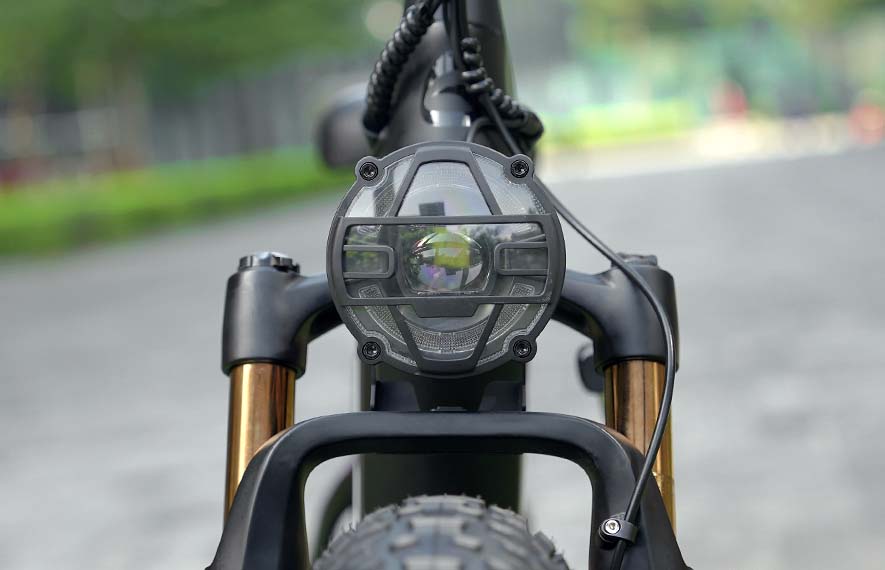

Motor LED Light

You can see your path clearly even in bad weather with a powerful motor LED light, ensuring your safety.

Carbon Fiber Frame

Frame is made of carbon fiber which not only makes the bike light but it also has better dampening and stiffness than bikes made of aluminum

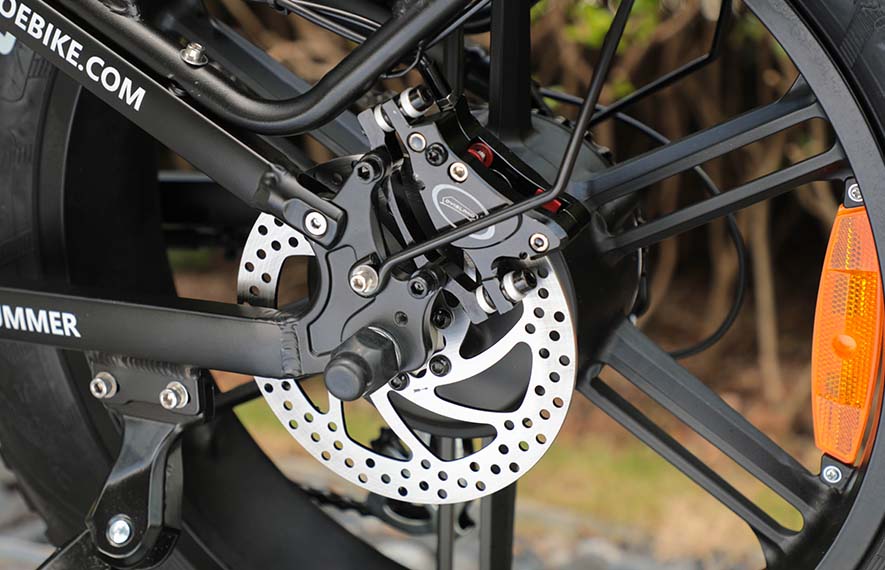

Dual Hydraulic Brakes

Offer enhanced durability and braking performance that lasts. When taken care of with some routine maintenance there won't be any braking power loss.

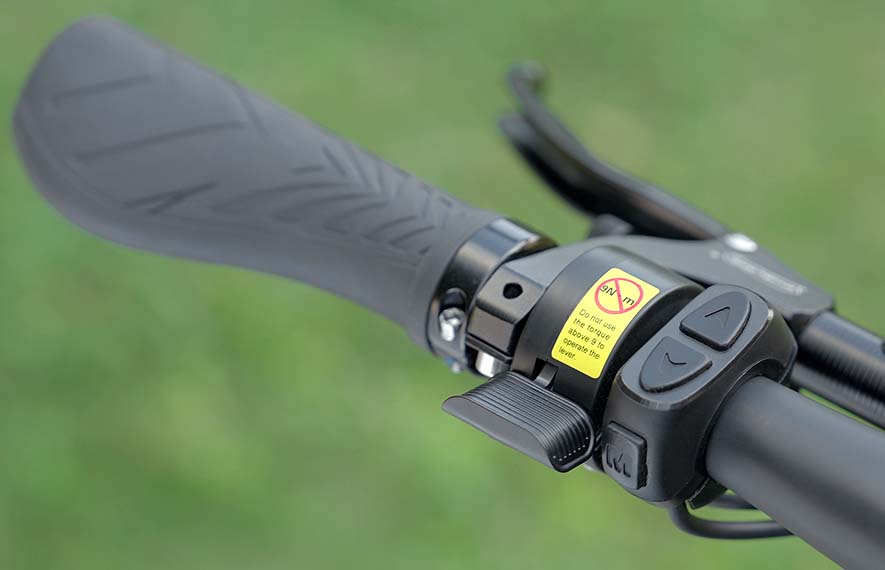

Thumb Throttle

Thumb throttle provides a convenient and accessible way to control your speed and power, making it easier to ride longer distances and tackle challenging terrain.

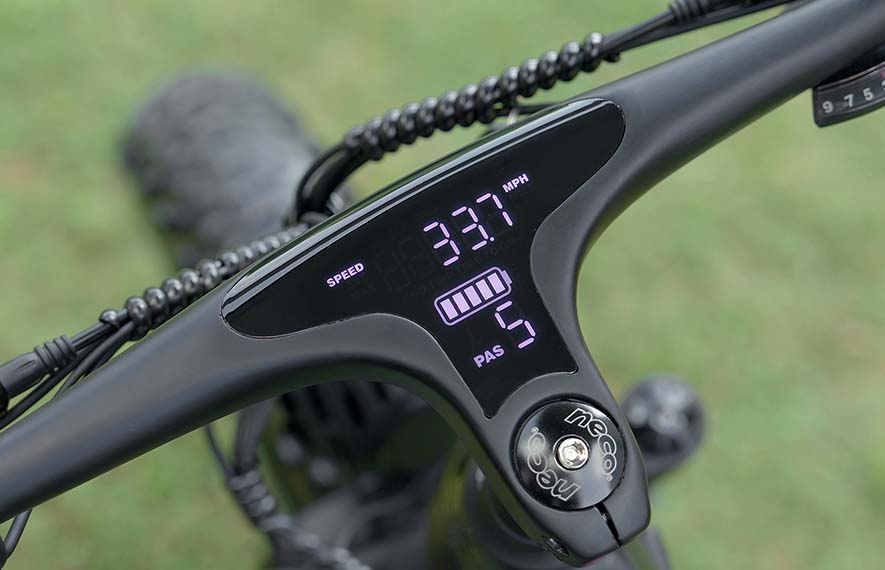

Embedded LCD Display

LCD dashboard displays E-Bike performance information to the rider. You can easily check your speed, range, power, battery level, and more.

12 Magnetic Speed Sensor

A 12-magnetic speed sensor detects an e-bike's speed. It has a magnet on the wheel and a sensor that detects it as it passes.

FAQ

Does my height/weight suit the ebike?

The recommended height for riders is 5'5" ~ 6'5", payload 380 lbs at maximum.

How can I install the Tesgo Pioneer？

Check out the Tesgo official instruction video.

When will my ebike ship?

For pre-orders, please refer to the shipping date on the product page. A shipping confirmation email will be sent to your email once the order has shipped. The carrier is FedEx. Once the items arrived in our warehouse, please allow 2 to 7 business days for your shipment to arrive at your address. For any third-party shipping, we cannot provide any additional shipping information or documentation. Any delivery dates provided by Tesgo are estimated.

Should I completely drain the battery before charing？

No. On many batteries this is preferred, however our batteries are all high-tech batteries and have built-in mechanisms that protect the battery from overcharging.
