All terrain
Professional Fat Tire Electric Bike
Professional Fat Tire Electric Bike
- Overview
- Details
- How to Install
- Reviews
Make it pro

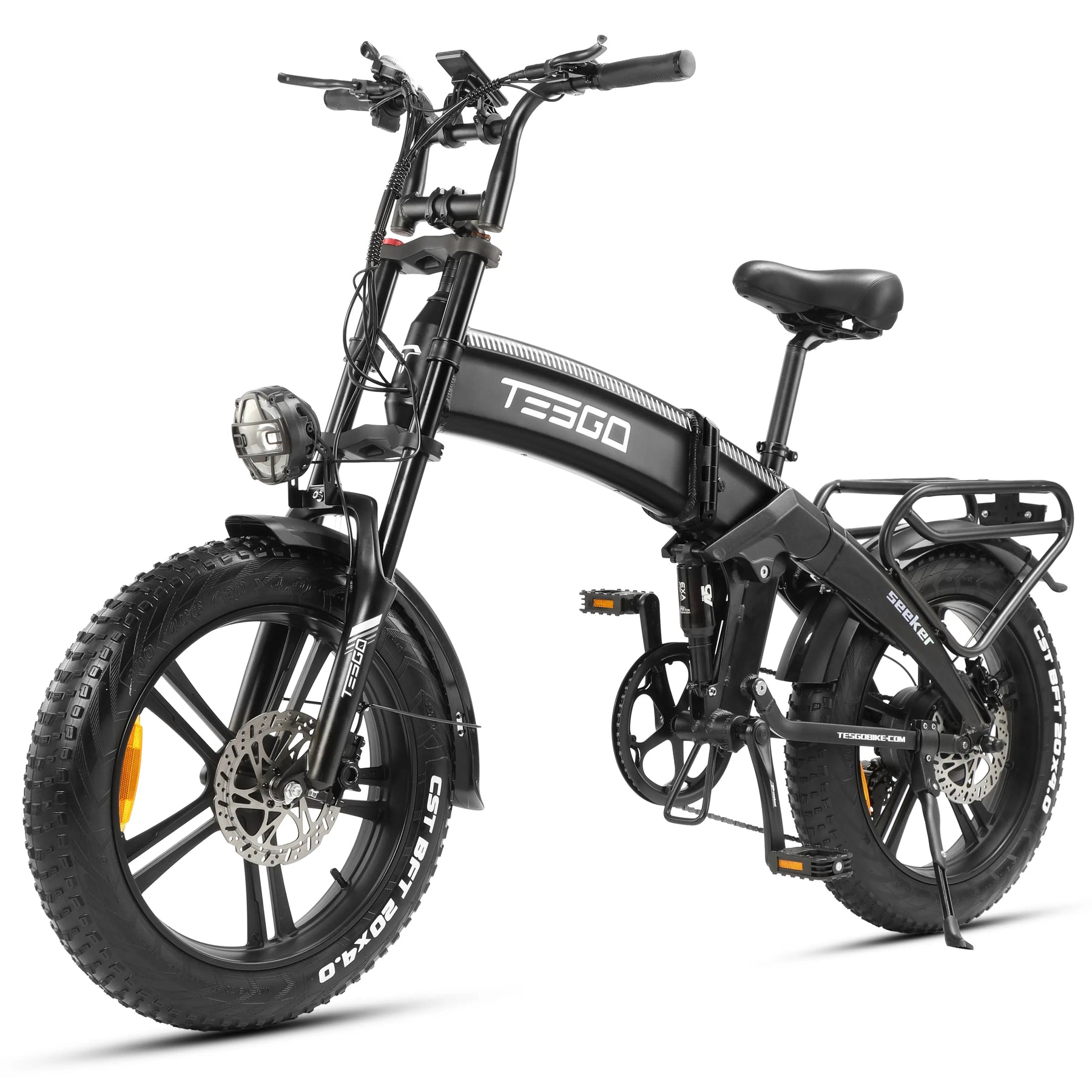

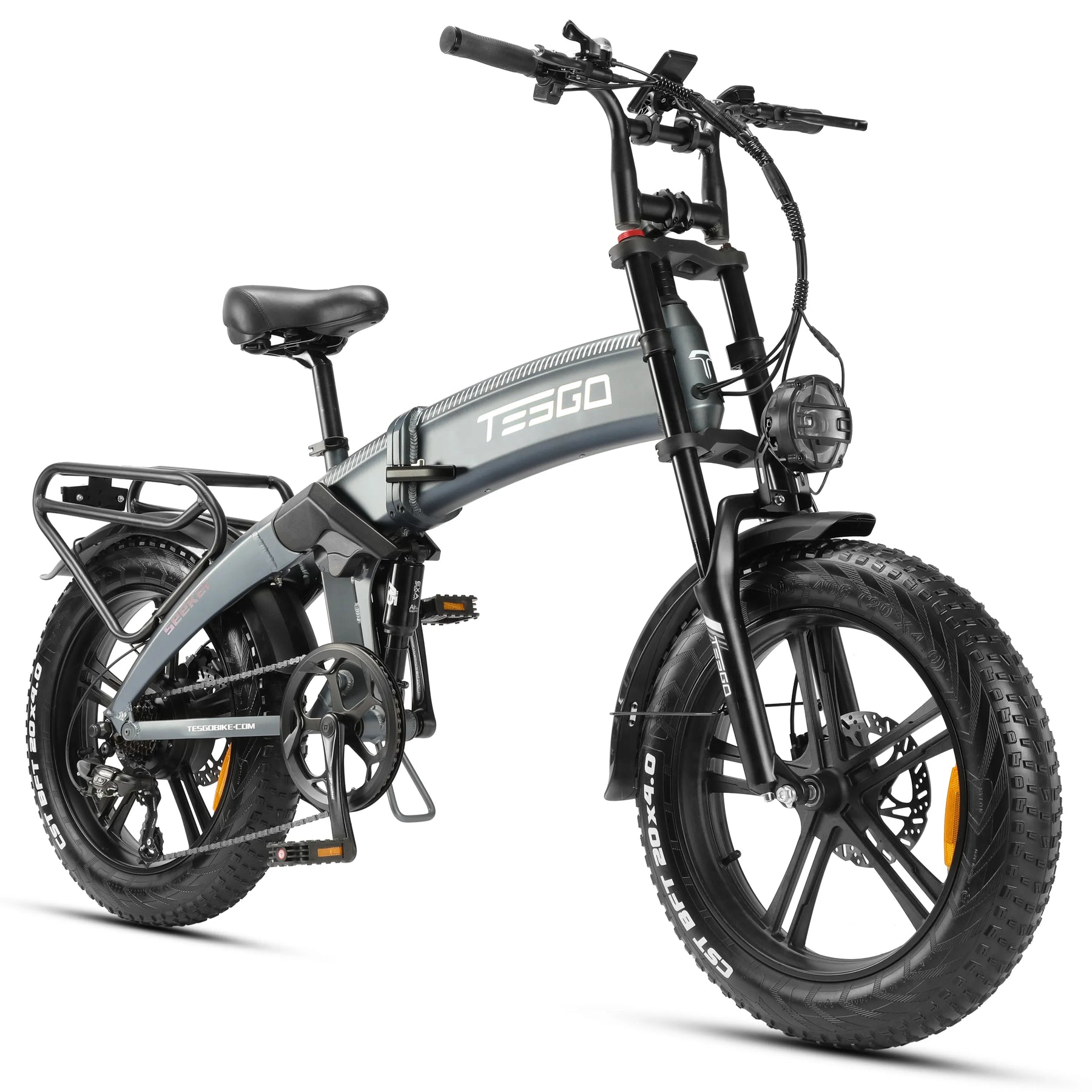

The Seeker Pro is the upgraded version of the base Seeker making it even more high performance with the latest tech and top-level component on the market.

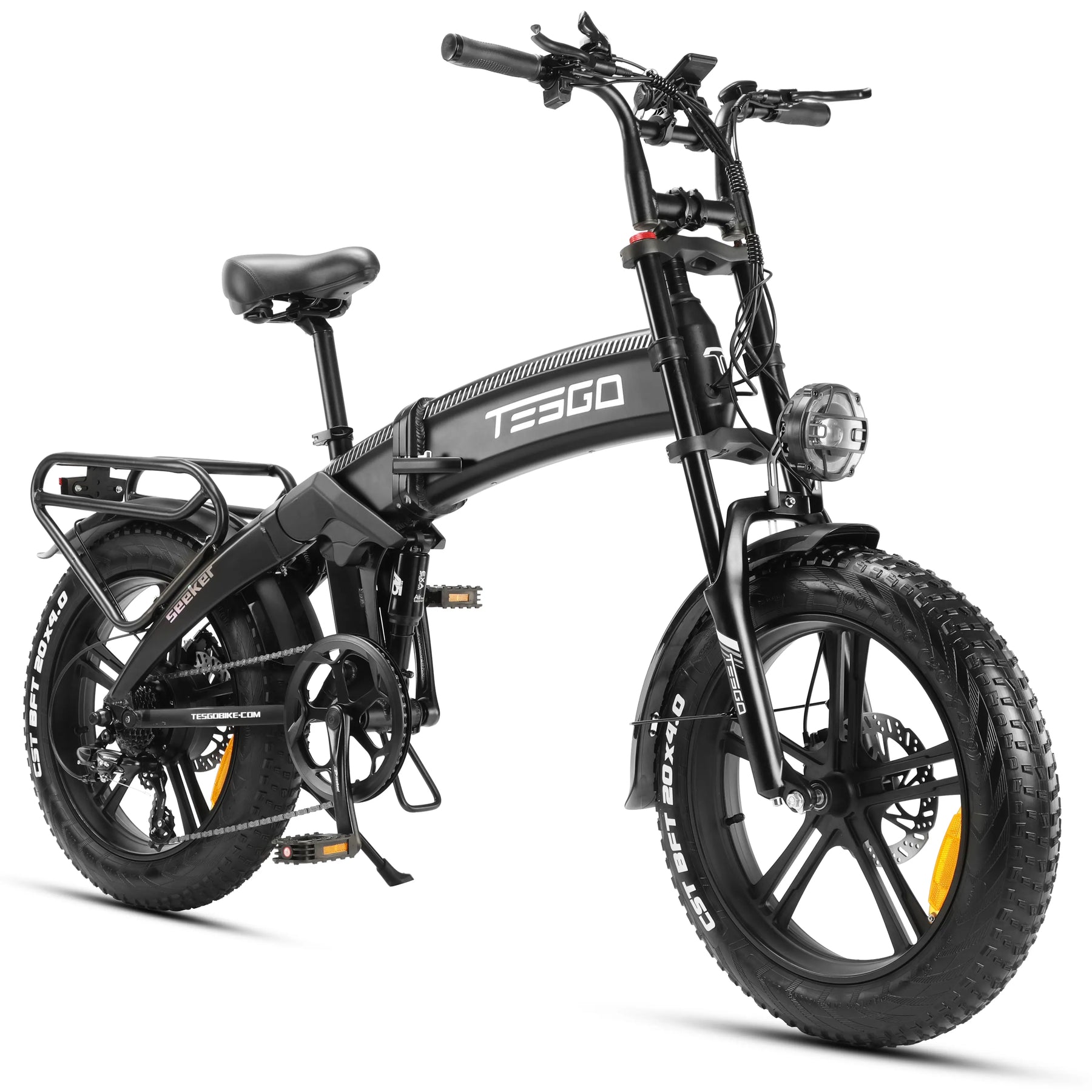

Hydraulic double shoulder fork
The Pro is fitted with a commanding double-shoulder front fork featuring aluminum shoulder legs. The shock absorption is handled by a lockable hydraulic suspension.
Air Pressure Shock Absorber
Upgraded from hydraulic spring shock absorber. Air pressure based suspension offers even smoother and quicker reaction to shocks thanks to the isolation from the frame.
Hydraulic Brakes
Upgraded hydraulic disc brakes deliver the optimal performance in the most demanding environments. That's why they are also used in cars and motorcycles.

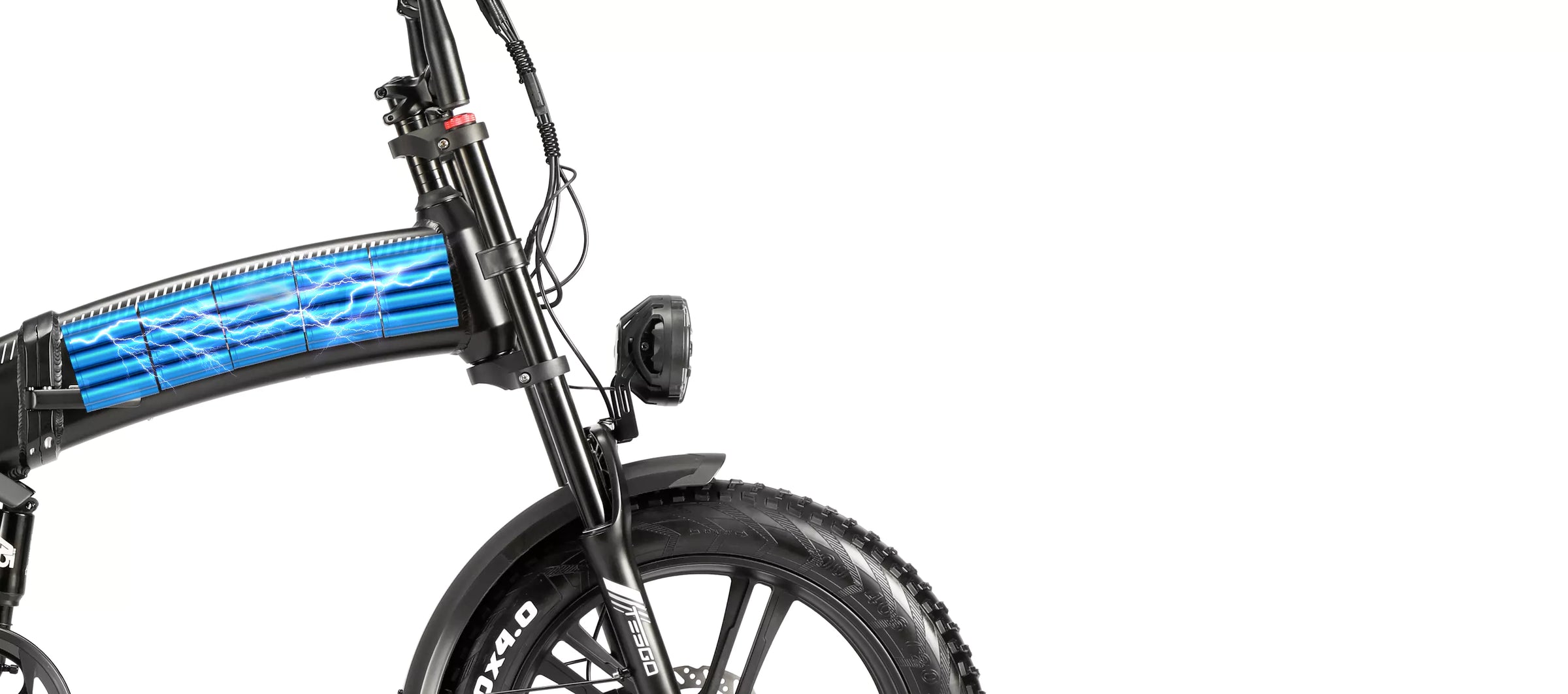

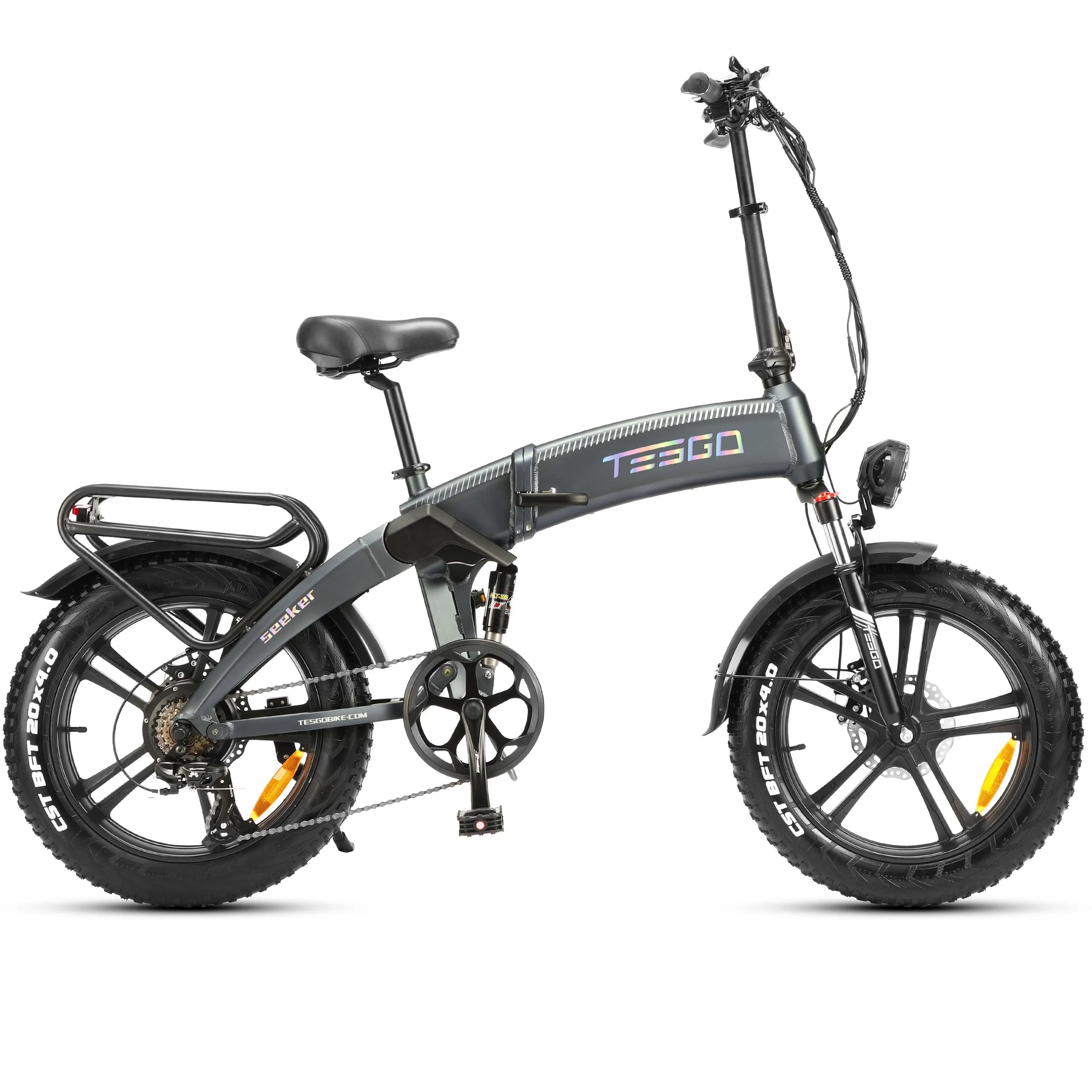

Functional Aluminum Frame

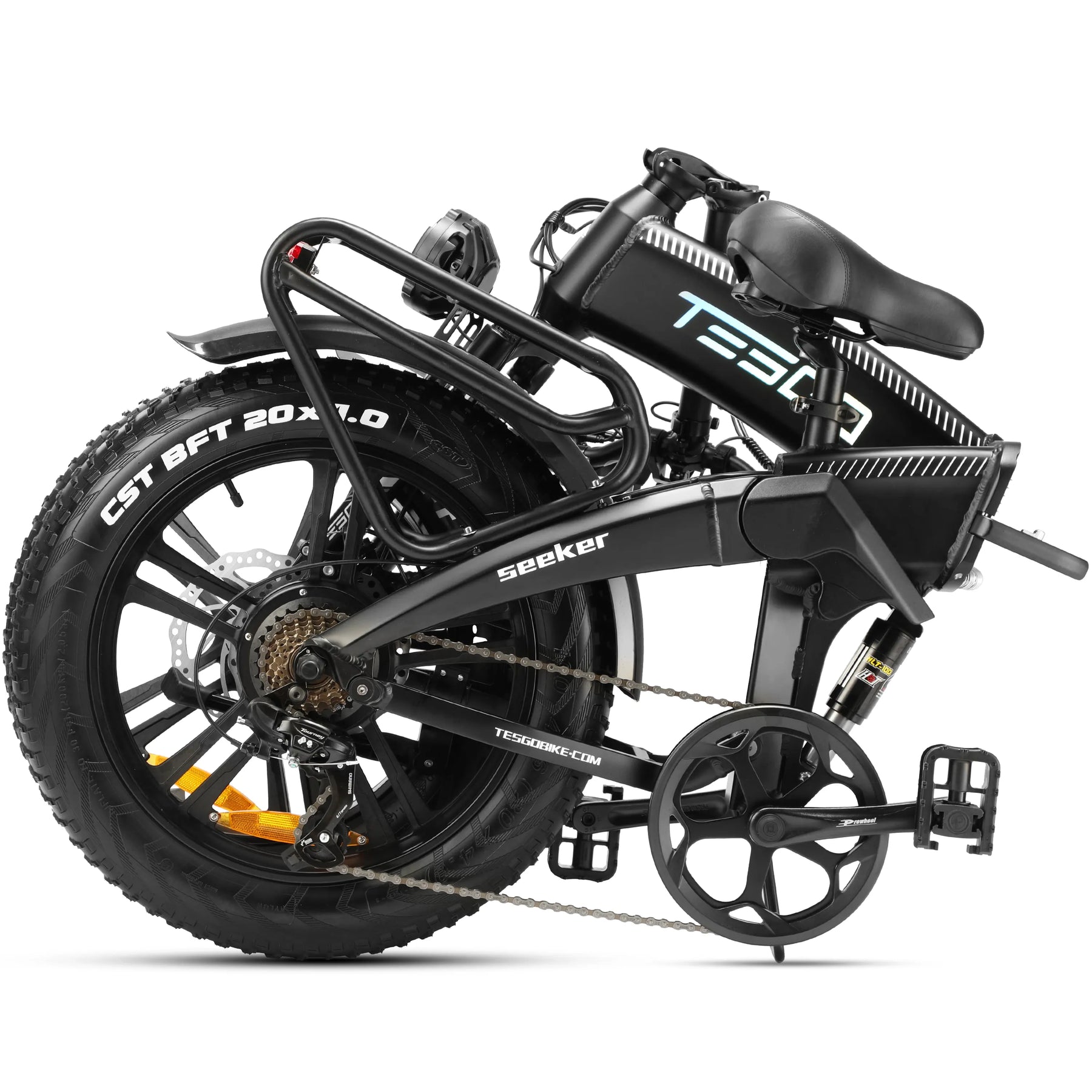

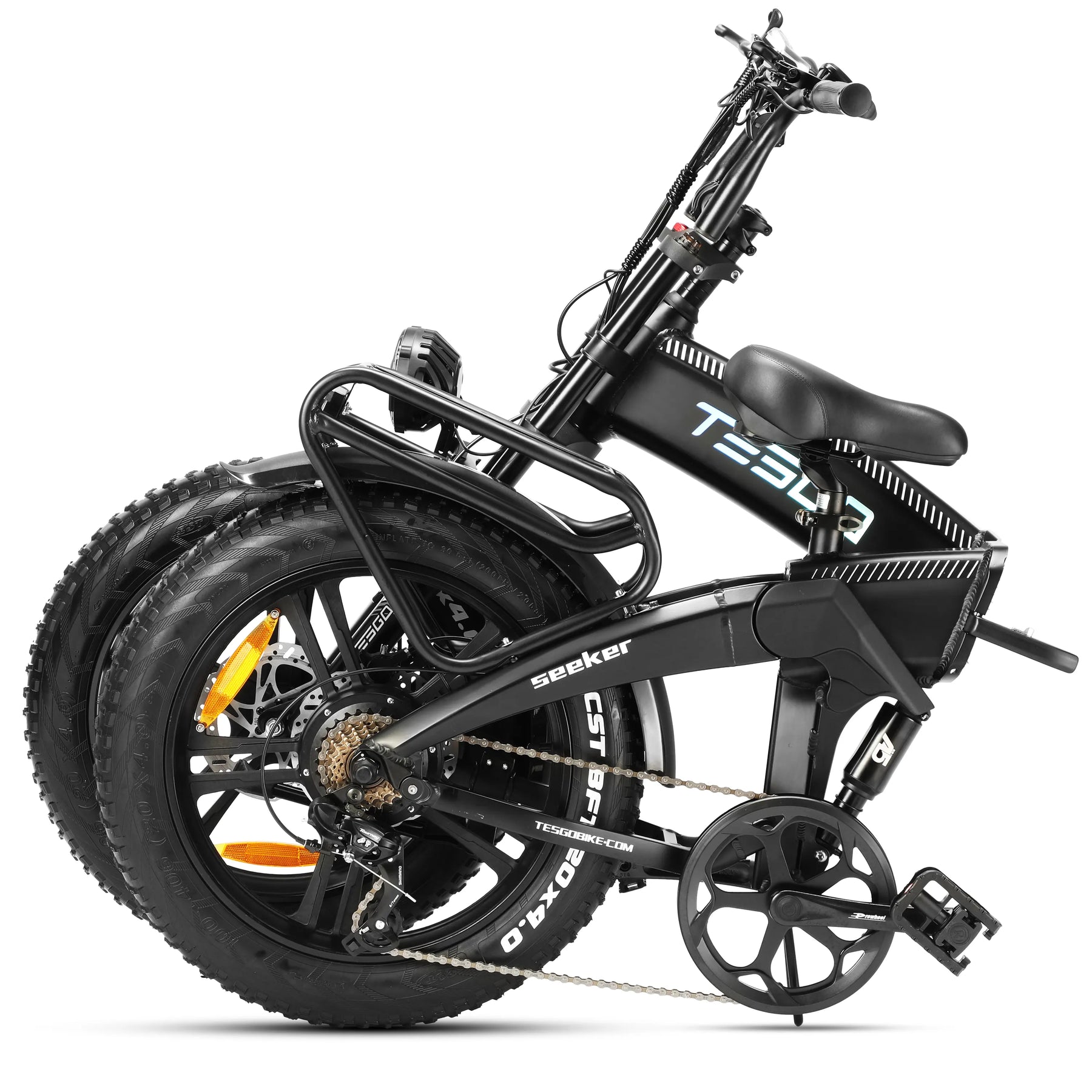

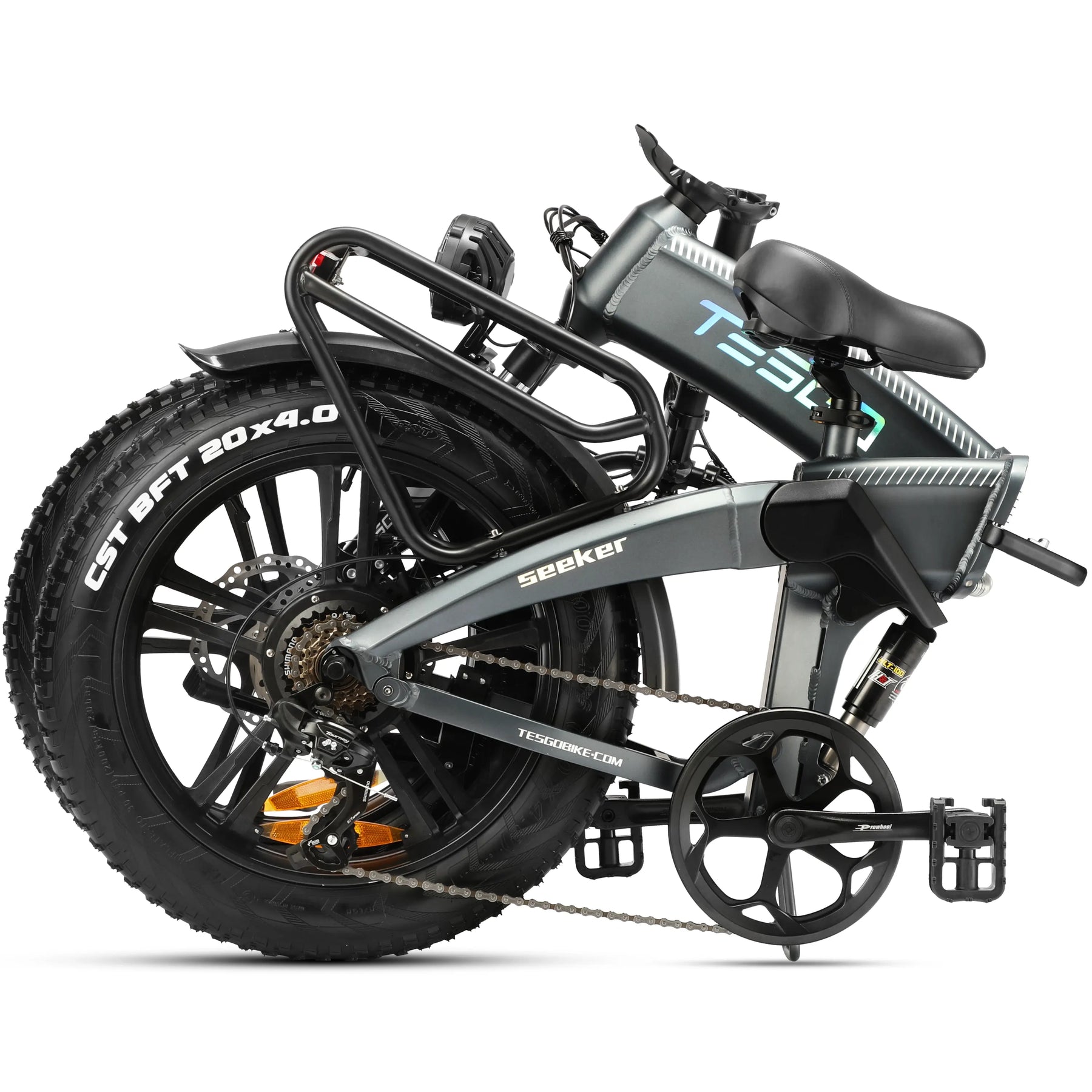

The Seeker combines a lightweight, stylish frame with integrated full suspension for a smooth ride on rugged terrain. Its foldable design ensures easy storage and transport, making it your ideal adventure companion with a perfect blend of off-road capability and comfort.
IP6 Ready For Snow
Riding in any weather is a breeze with the Seeker electric bike, which is IP6 water resistant and has disc brakes that operate perfectly in wet conditions and even in snow.

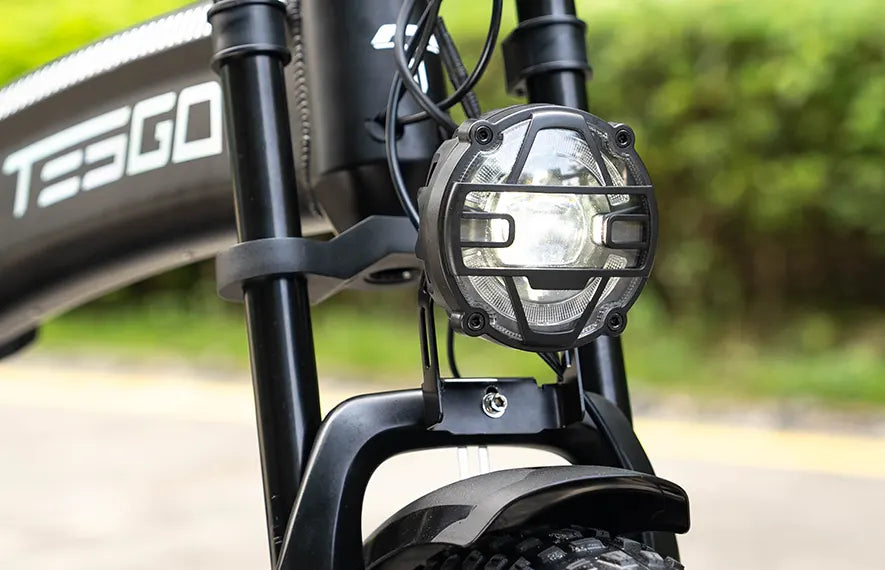

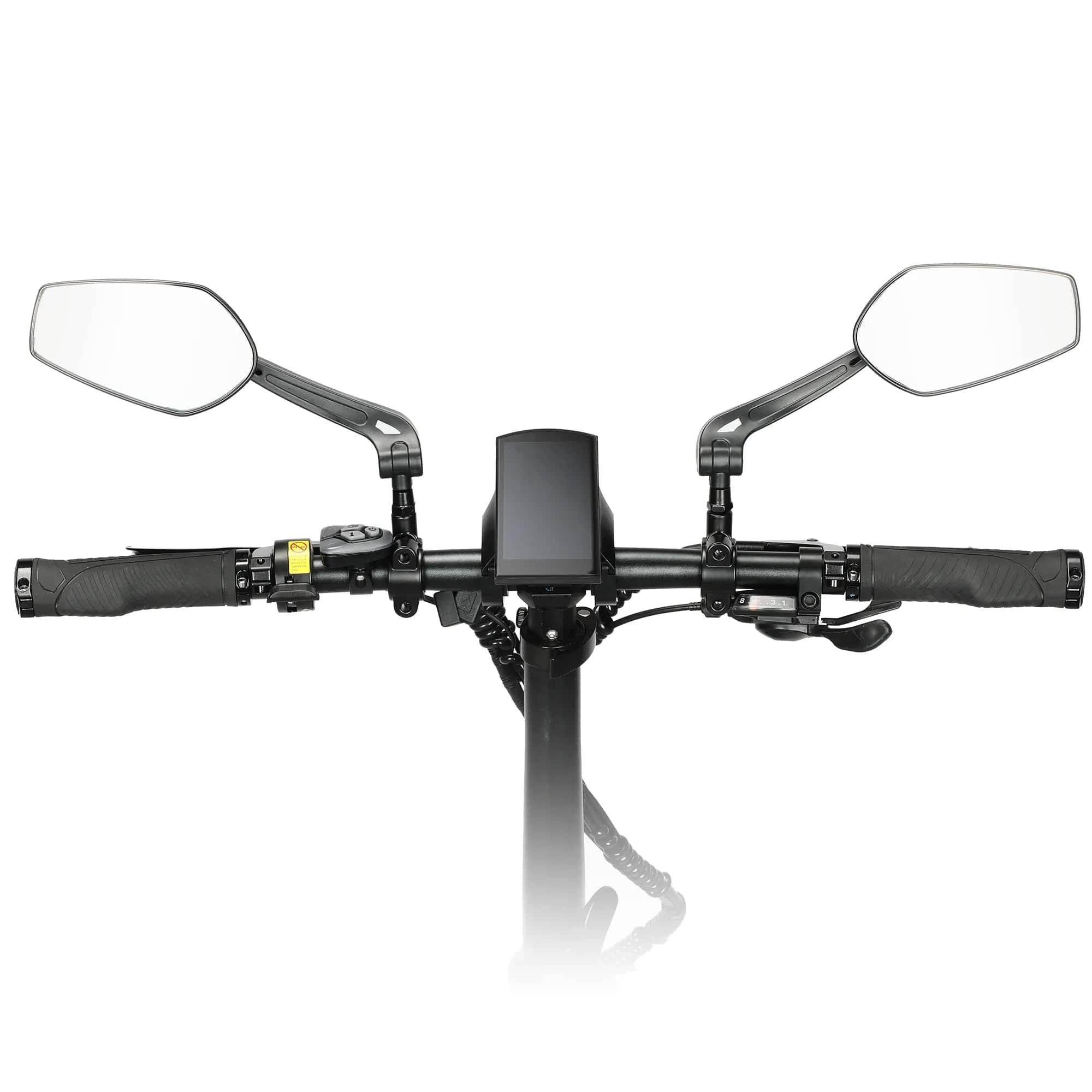

Powerful Lights and Horn
The motorcycle-style medium headlight enhances your visibility during low-light conditions and night rides, while the motorcycle-grade horn ensures that your presence on the road is unmistakably heard by others when needed.

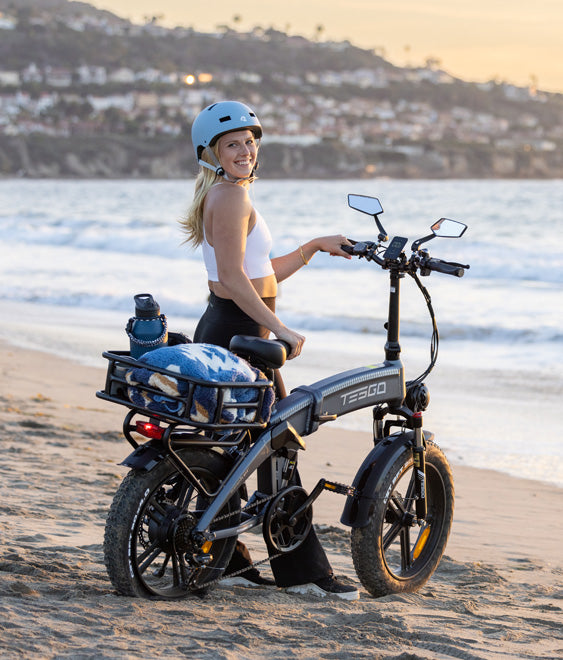

Ready For Cargo
The Seeker comes with a sturdy rear rack and can be equipped with optional rear basket or seat.
PRODUCT DETAILS
- Specs
- Components

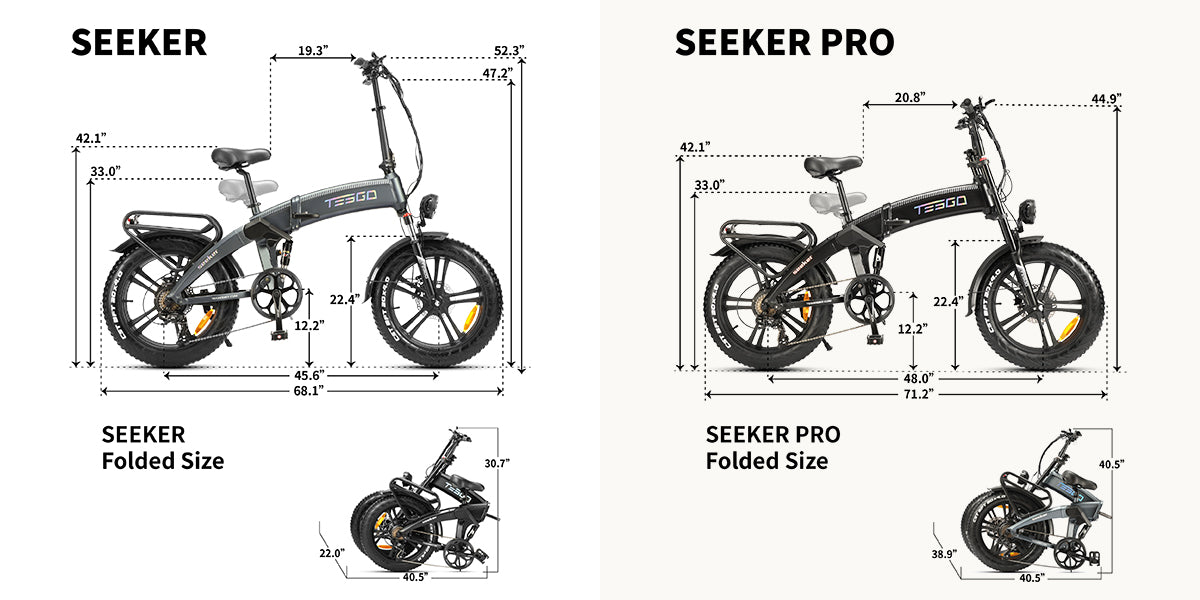

- Measurments
Seeker | Seeker Pro | |
---|---|---|

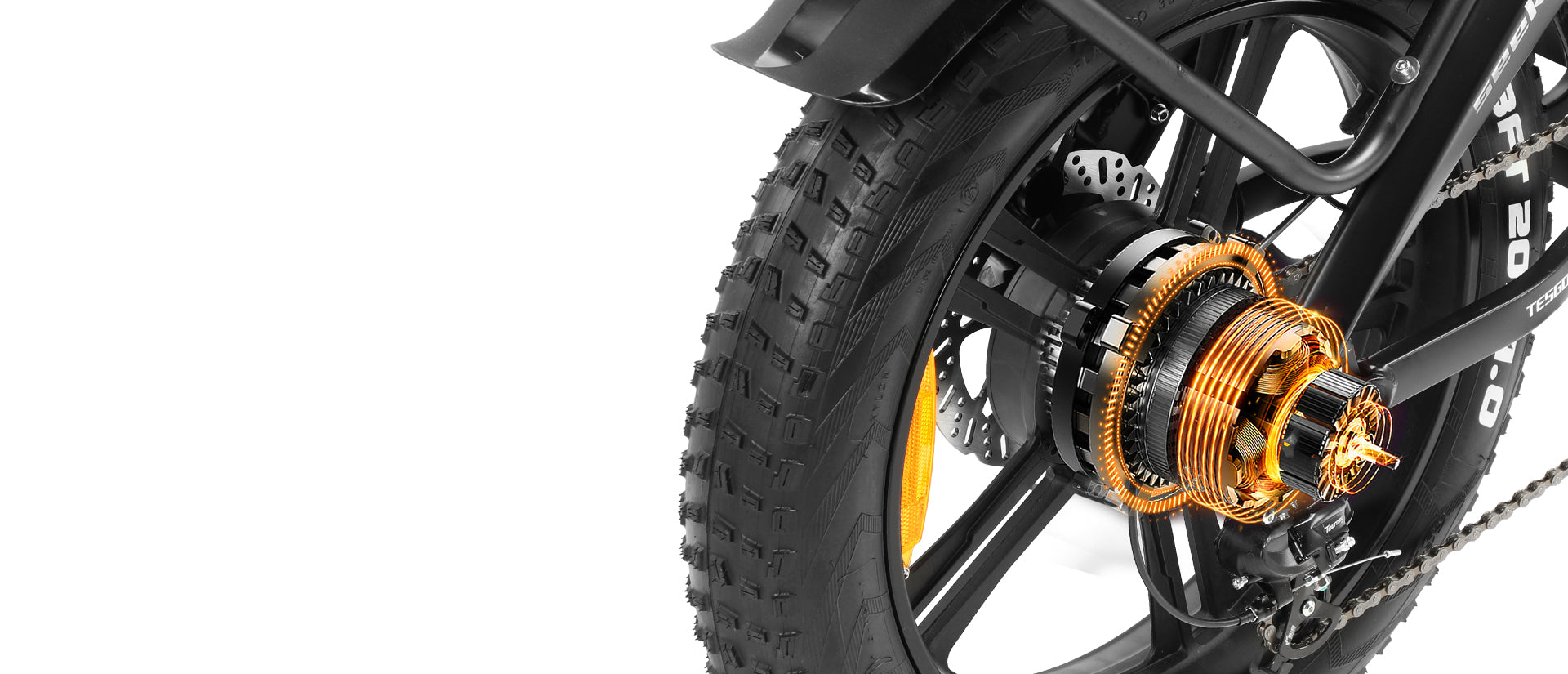

Motor | 1000W 48V | 1000W 48V |
Top speed | 28 Mph | 28 Mph |

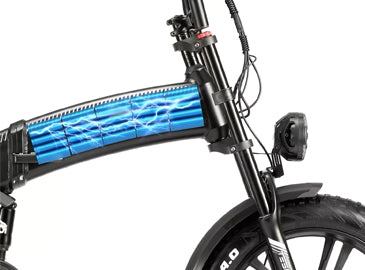

Battery | 48V16.8A | 48V16.8A |
Charger | 2A | 2A |
Charging time | 8 hours | 8 hours |
Pure electric range | 35-45 miles | 35-45 miles |
Boost cruising range | 50-60 miles | 50-60 miles |
PAS | 5-level pedal assistance | 5-level pedal assistance |
Throttle | Thumb | Thumb |
Sensor | 12-point magnetic steel speed | 12-point magnetic steel speed |
IP-level | IP6 | IP6 |
Lights and horn | Motorcycle-style with horn + tail light with own battery | Motorcycle-style with horn + tail light with own battery |
Riser | Folding telescope | Folding telescope |
Front Fork | Aluminum shoulder and iron leg with locking shock absorber | Double-shoulder front fork, aluminum shoulders and aluminum legs, hydraulic locking |
Suspension | Hydraulic spring shock absorbers | Air pressure shock absorbers |
Frame material | Aluminum alloy | Aluminum alloy |
Tires | 20x4" Fat Tires | 20x4" Fat Tires |
Rim material | Aluminum alloy with magnesium spokes | Aluminum alloy with magnesium spokes |
Transmission | Shimano 7-speed | Shimano 7-speed |
Chainring | 52T double chain cover | 52T double chain cover |
Brakes | Mechanical disc ļæ 180mm*2.0T | Hydraulic disc ļæ 180mm*2.3T |
- Tires: 20*4" Fat Tires
- Front Forkļ¼80 mm with adjustable lockout
- Brake lever: Aluminum alloy levers with motor switch
- Brake Rotors: ļæ 180mm*2.0T(Seeker)ļæ 180mm*2.3T(Seeker Pro)
- Brakeļ¼Dual Piston Hydraulic Brakes
- Frame: 6061 Aluminium Alloy
- Chain: KMC chain
- Crank Set: 220mm w/52T
- Freewheel: Shimano 7 speed gear system
- Gearing: 12-32T 8-Speed
- Rear Light: Automatic brake light
- Pedals: Wellgo, Aluminum
- Throttle: Thumb Throttle
- Headlight: 48V LED light
- Spokes: Magnesium Alloy
- Seatpost: 275x30.4 mm
UNBOXING Video

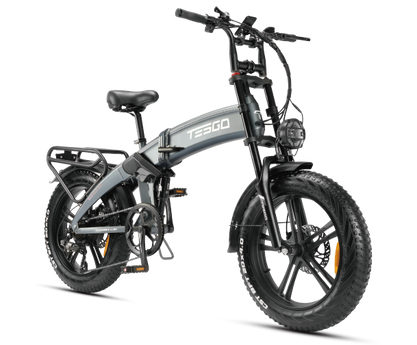

Download the Manual

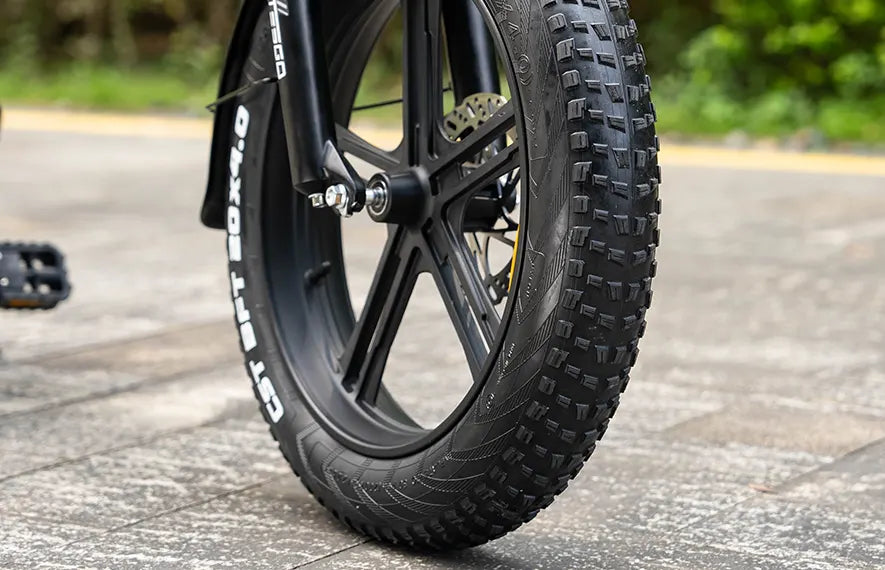

DOWNLOAD MANUAL20x4" Fat Tires and Aluminum/Magnesium Rims
Fat tires and full suspension work together seamlessly, offering exceptional grip and impressive damping. Moreover, aluminum rims with magnesium spokes further boost overall performance.

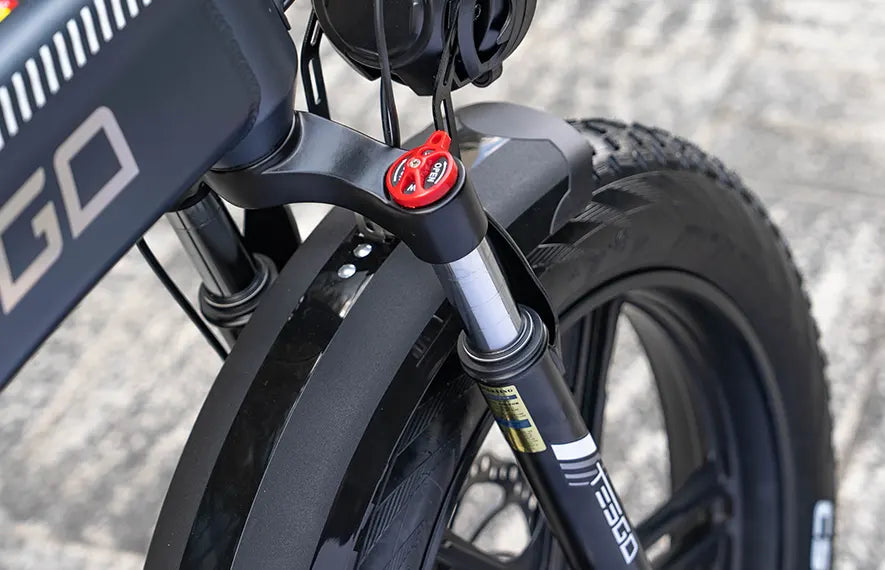

Hydraulic Fork
Featuring a locking function the hydraulic suspension in front makes your ride smooth and easy to control.

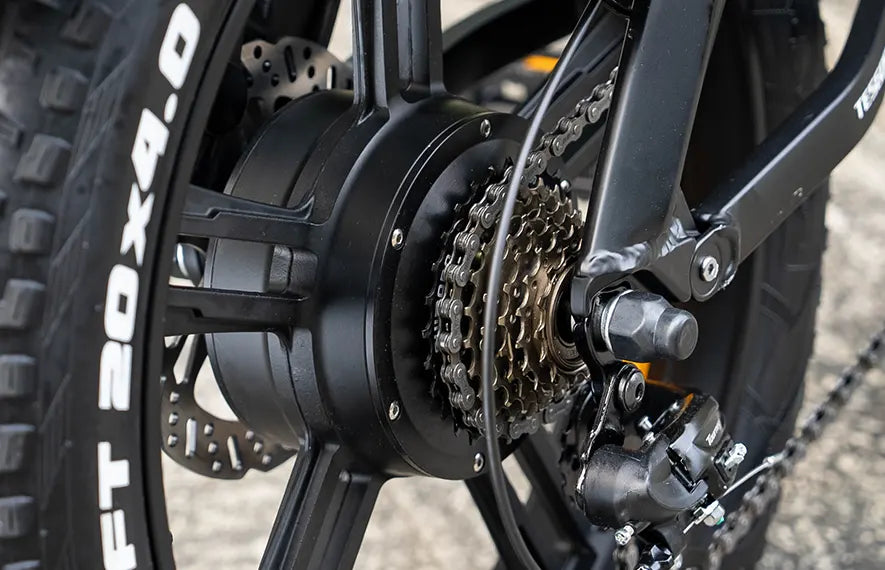

7-Speed Shimano System
7-speed shift system makes it effortless to adjust for inclines, downhill descents, or stop-and-go outdoor rides.

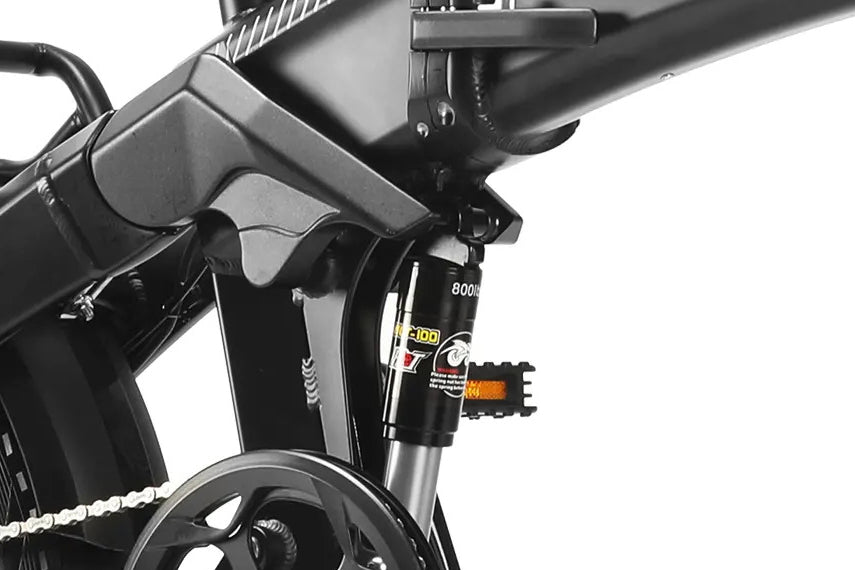

Hydraulic Four-Link Suspension
The hydraulic spring shock absorber's 800-pound connecting rod is linked with bearings, resulting in reduced resistance and superior shock absorption performance.
5-Level Pedal Assistance
The five levels of assistance with 12 magnetic steel speed sensor makes the bike easy to ride at any pace you wish. Fly on full-throttle or cruise in style at low speed.

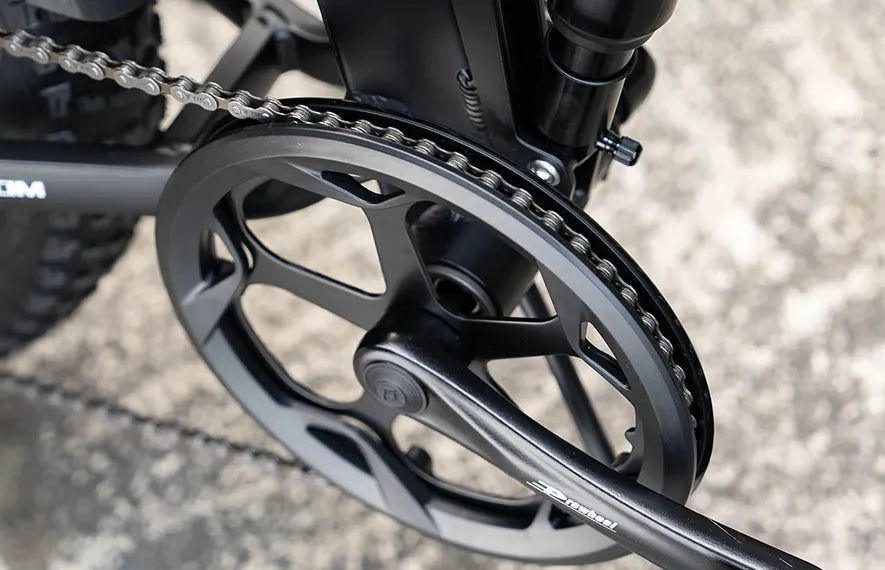

52T Chainring
The large chainring delivers impressive power, enabling faster riding with reduced unnecessary pedaling. Additionally, the double chain cover ensures that the chain remains securely in place, preventing any easy derailment.
Do my height and weight fit the Seeker-Pro?
The recommended height for riders is 5'1" ~ 6'5", and the maximum load of the Seeker-Pro is 330 lbs.

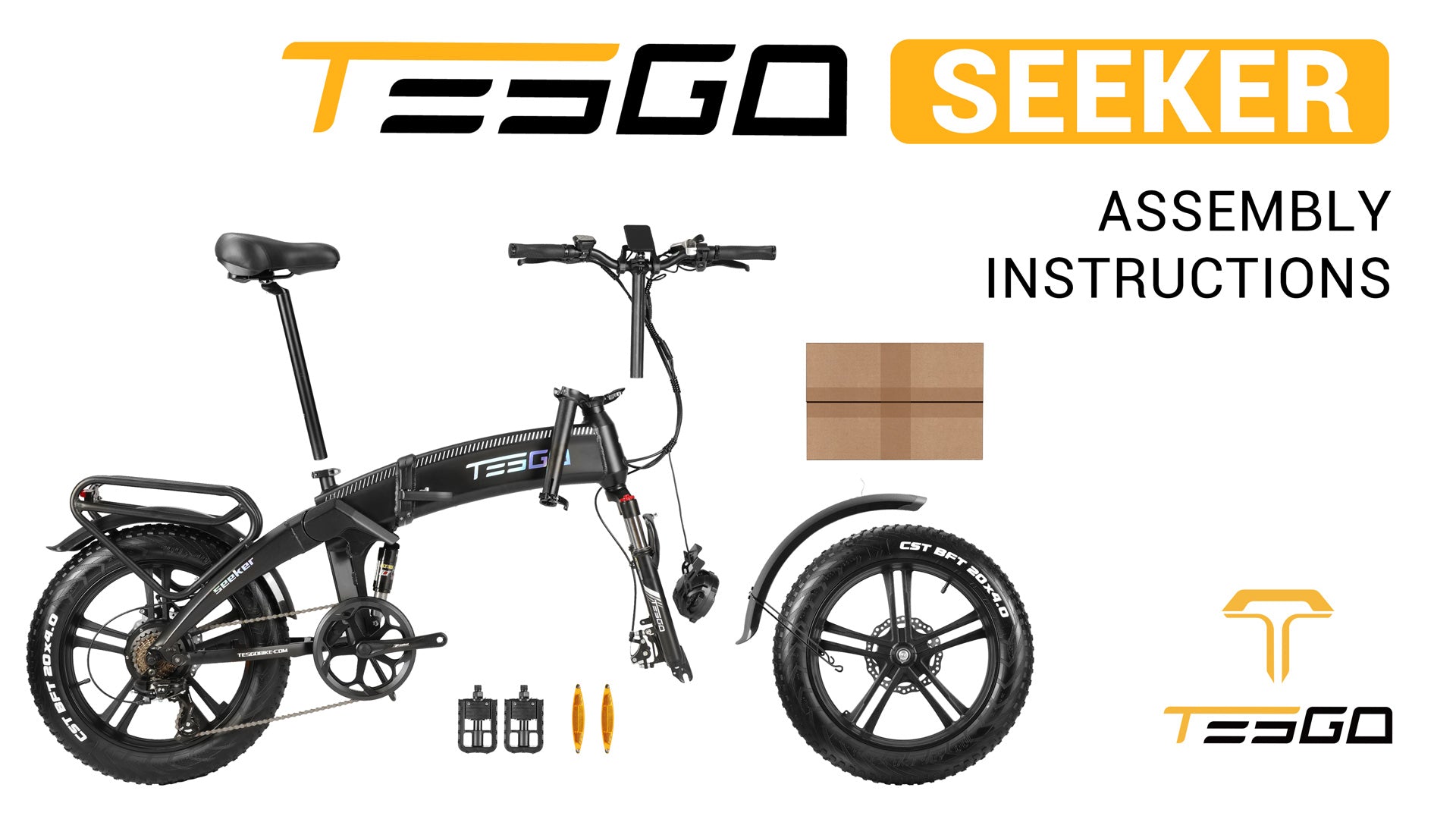

How to assemble the Seeker?
Please follow the instruction from our unboxing and assembly video.
When will my bike be delivered?
We ship free within 5-7 business days to the lower 48 states and do not ship to PO and APO boxes. For more information, visit our shipping policy.
Should I fully discharge the battery before charging?
No, you should not. Our batteries have built-in mechanisms that protect them from overcharging.
